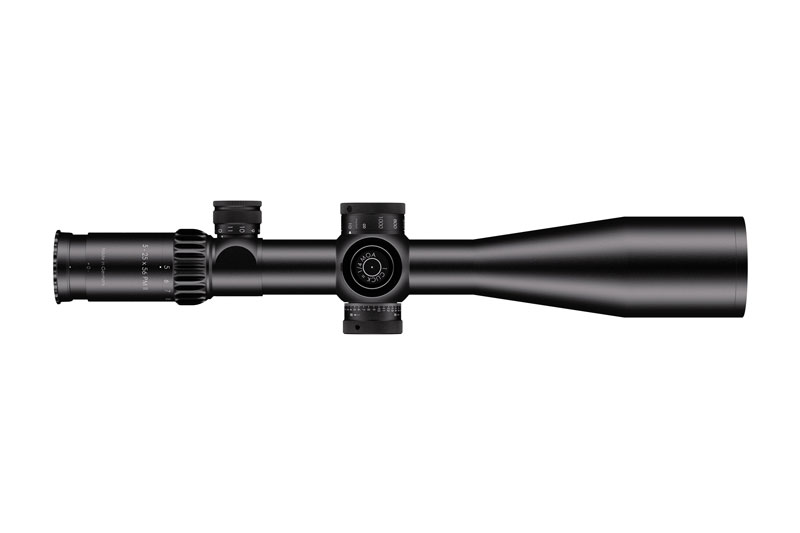

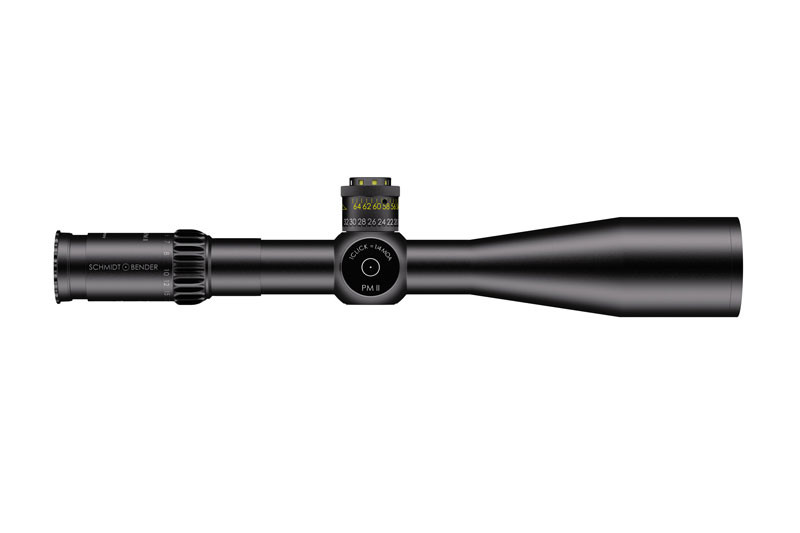

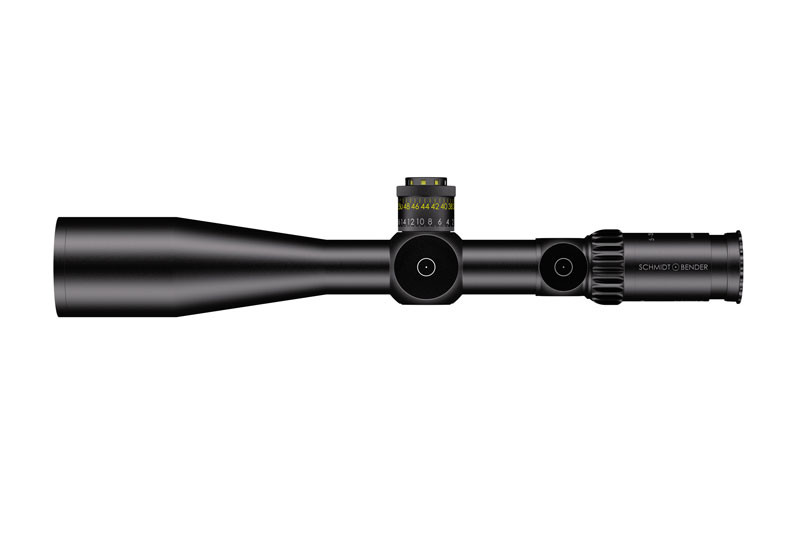

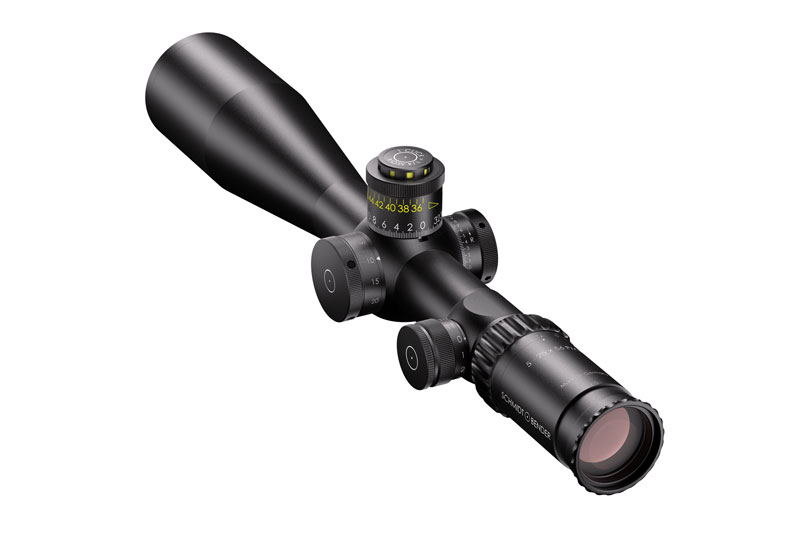

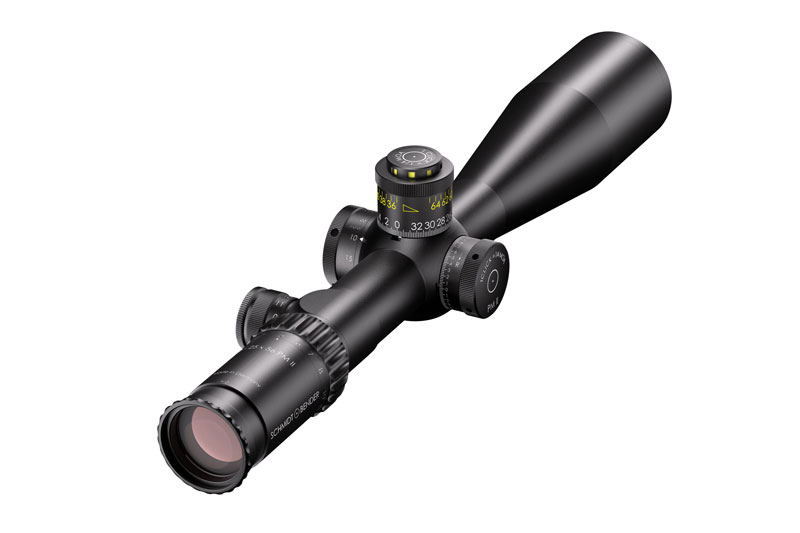

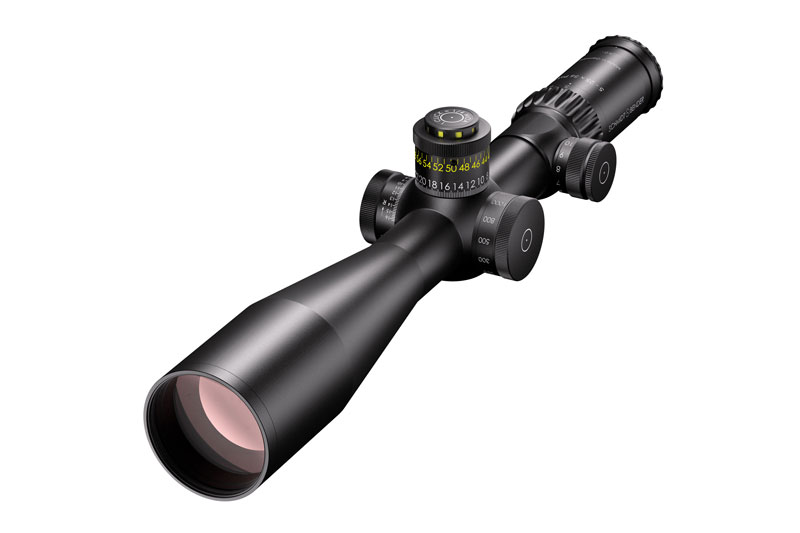

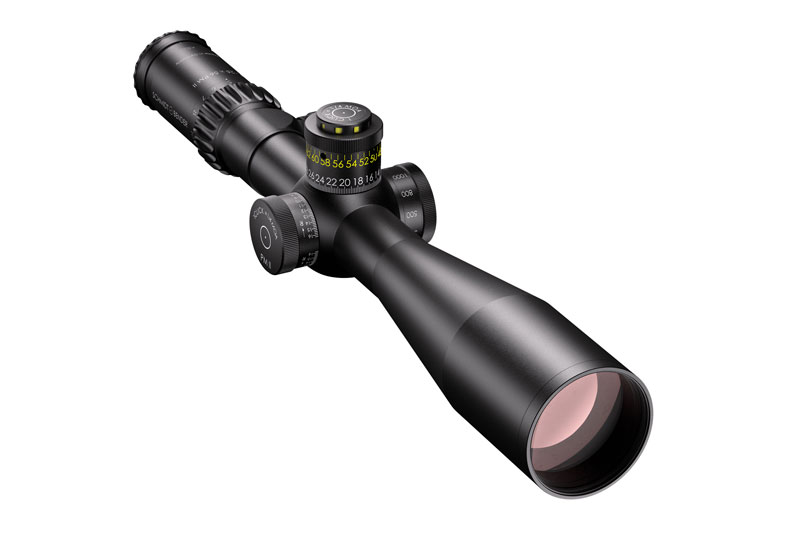

Schmidt & Bender 5-25x56 PM II LP Illuminated FFP MSR2 1cm cw DT/ST Rifle Scope
The Schmidt & Bender PM II 5-25x56 has set the benchmark for the industry in terms of optical quality and mechanical reliability and this latest version is set to be no different. A new ocular design makes Schmidt & Benders already best seller even more operable: a redesigned magnification ring is made out of solid aluminum and can accommodate our Throw Lever. The versatile magnification range, superb optics and rugged realiability makes it a true all rounder. It is perfect for the hunter who is looking to hit the range occasionally to the out and out competition shooter who is looking to win the league year on year this scope will have you covered.
In addition, the diopter adjustment can now mount Schmidt's military grade Polarization Filter via a thread as well as Tenebraex caps without needing any bulky adapters.
The new multi purpose sniper reticle the MSR2 is a first focal plane reticle that is designed to provide an uncluttered yet informative FOV meaning this rifle scope has the latest technology in terms of reticle and optical design.
The turrets of the PM II 5-25x56 have also been upgraded as standard to the new low-profile elevation turret design which provides a large adjustment range for long range shooting but allows the optic to be be combined with a red dot sight for close quarter distances.
Due to its great magnification range and well-engineered performance, the Schmidt & Bender PM II 5-25x56 has always been very popular among military/police units as well as competition shooters which are demanding the best of the best & this new incarnation is set to be no different.
Offering a vast variety of options, the customer can choose exactly the optic they are after.
| Weight (g) | 1065 - 1125 |
| Length (mm) | 420 |
| Tube diameter (mm) | 34 |
| Magnification | 5-25x |
| Objective lens diameter (mm) | 56 |
| Field of view (m) | 5.3 - 1.5 |
| Exit pupil (mm) | 11.0 - 2.3 |
| Eye relief distance (mm) | 90 |
| Twilight factor | 15.8 - 31.6 |
| Transmission | 90 |
| Focal plane | 1. |
| Diopter | -3 to+2 |
| Parallax adjustment | yes, 10 to ∞ |
| Illumination | yes, 11 settings |
| Adjustment | DT ST |
| Adjustment Value/Click | 0.1 mrad | ¼ MOA |
| Elevation (Turret) | 26 mrad | 65 MOA |
| Windage (Turret) | ±6 mrad | ±16 MOA |
| Adjustment | DT MTC LT / ST ZC CT |
| Adjustment Value/Click | 0.1 mrad |
| Elevation (Turret) | 272 cm/100m |
| Windage (Turret) | ±60 cm/100 |
| Adjustment | DT II+ MTC LT / ST II ZC LT |
| Adjustment Value/Click | 0.1 mrad |
| Elevation (Turret) | 26.5 mrad |
| Windage (Turret) | ±6 mrad |
| Adjustment | MT II MTC LT / DT II+ ZC LT |
| Adjustment Value/Click | 0.5 cm/100 m |
| Elevation (Turret) | 295 cm/100 m |
| Windage (Turret) | ±65 cm/100 m |
| Waterproof (m) | 3 m (25 On request) |
| Temperature Range | |
| Storage | -55 to 71°C |
| Function | -46 to 60°C |
| Turret Types | cw/ccw |
| Colours | Black, RAL 8000 |
| Reticles | GR²ID (FFP), H59 (FFP), LRR-MIL (FFP), MSR2 (FFP), P4FL (FFP), P4FL-MOA (FFP), P5FL (FFP), Tremor3 (FFP), Gen II XR (FFP) – (On request), P4FL (SFP) – (On request) |
Ultra flat Double Turn (DT27):
The 5-25x56 PM II features now the well-proven low-profile double turn elevation turret which is capable of 27 MRAD (DT27). It perfectly supports the use of an additional red dot sight for close distances. Although being very compact, it maintains all essential features of a Double Turn turret such as a visual and tactile yellow-colored revolution indicator, locking function, MTC clicks and easy to read digits.
Magnification Ring:
The new magnification ring is now fully rugged and is made out of solid aluminum. It has been further optimized and now features a magnification ring with deep grooves for a better grip which also allows to accommodate our Throw Lever (see page 49).
Diopter Adjustment:
In addition, the diopter has been redesigned in order to attach our military grade Polarization Filter Ocular via a thread. The ribbed structure of the diopter adjustment makes it suitable for the tactical Tenebraex Ocular Lens Cover.
MSR2 Reticle:
Schmidt & Bender 5-25x56 PM II LP MSR2 1cm cw DT/ST Rifle Scope.
