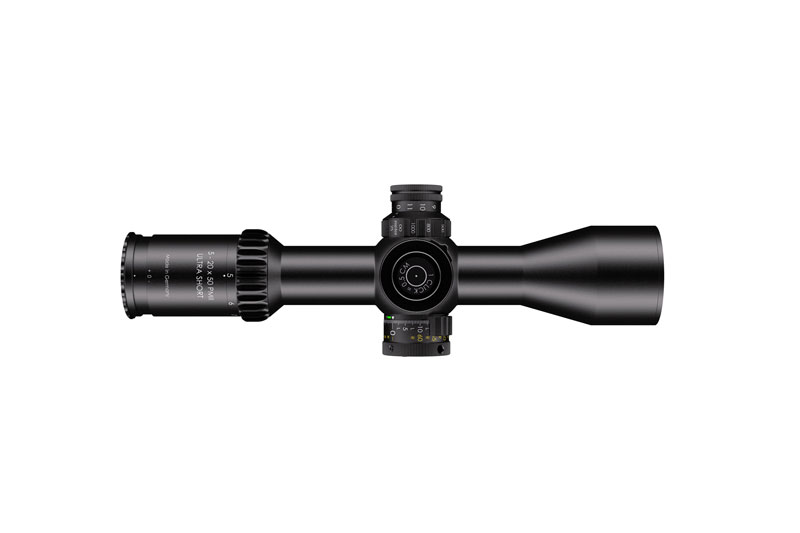

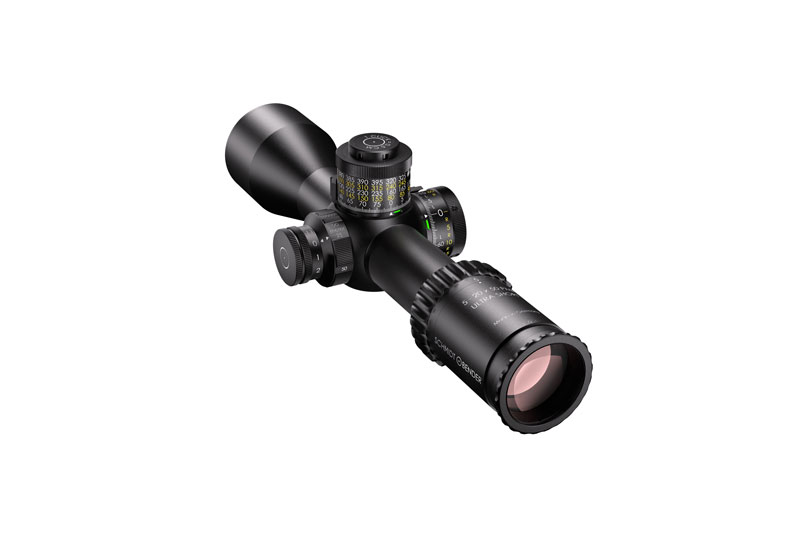

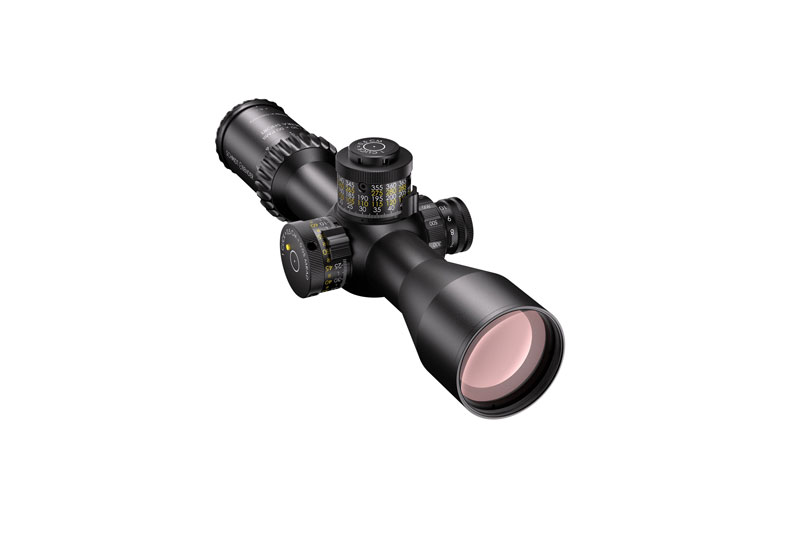

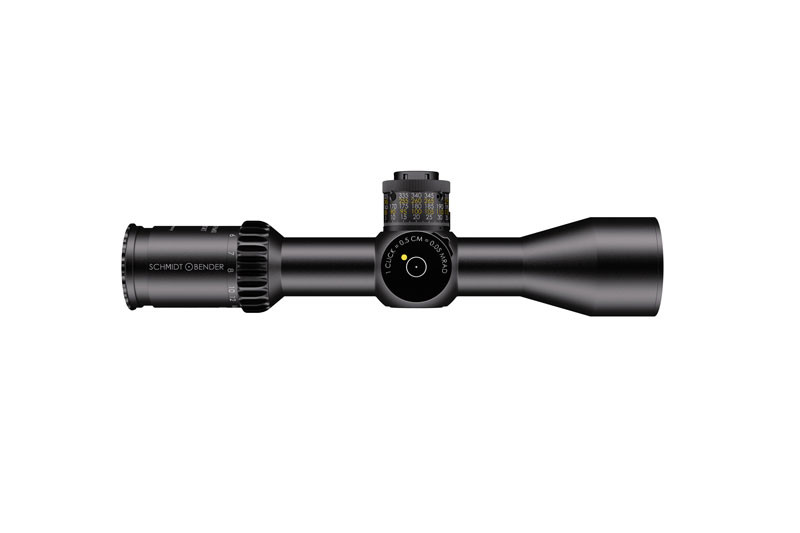

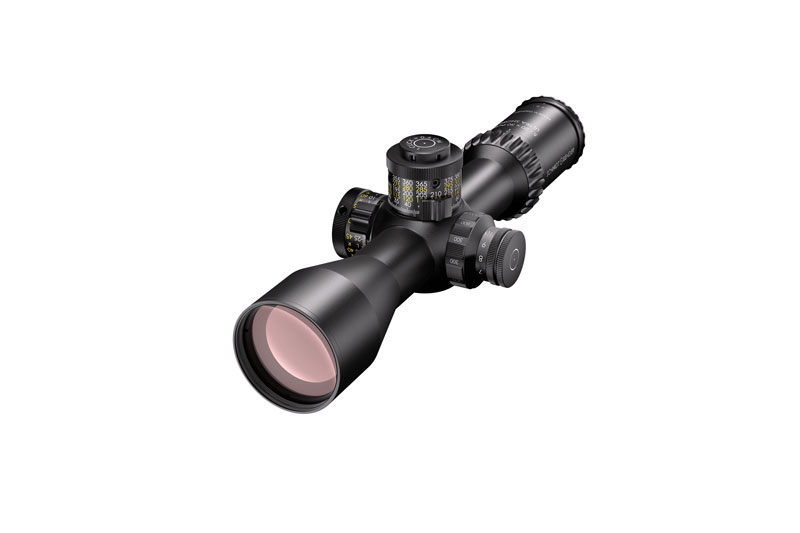

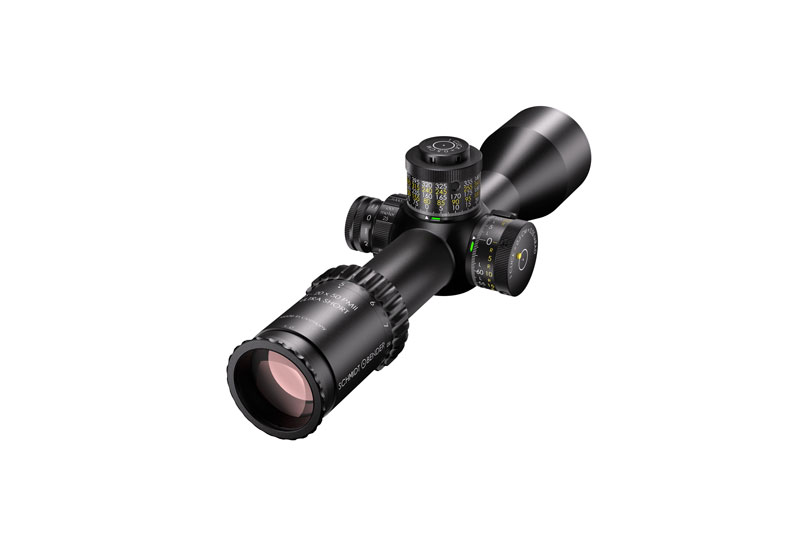

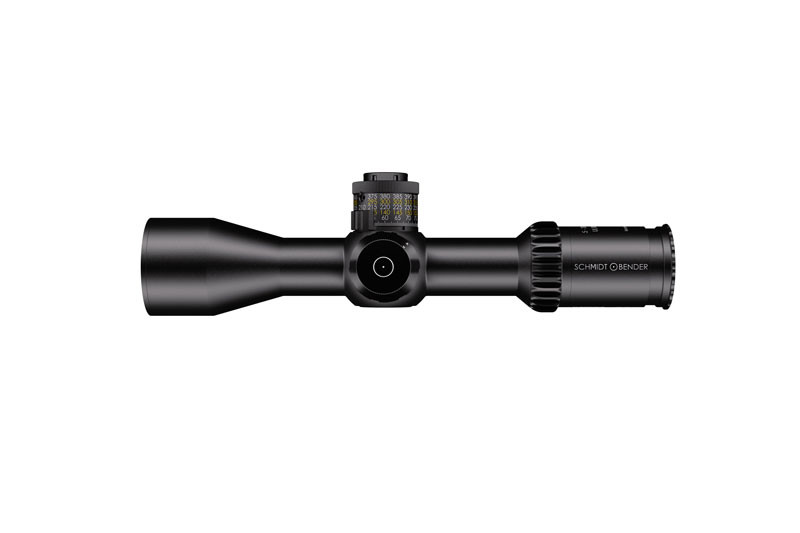

Schmidt & Bender PM II 5-20x50 Ultra Short LPI Illuminated FFP P4FL 0.1 MRAD cw DT27 MTC LT / ST ZC CT Rifle Scope
- Versatile magnification range : 5-20x
- 34mm main tube
- 27 mrad internal adjustment
- Zero click
- Locking elevation
- Capped windage
- Double turn turret
- First focal plane P4FL reticle
- More tactile clicks
- LPI (Illumination Parallax Integrated):
- Magnification Ring:
The Schmidt & Bender PM II 5-20x50 Ultra Short has just got a revamp! The new Schmidt 5-20x Ultra Short comes with the newly designed illuminated control system that is now integrated into the side focus adjustment knob of the riflescope meaning it can be made short & allow left hand shooters use the rifle scope.
The Schmidt & Bender PM II 5-20x50 Ultra Short is Schmidt & Bender´s shortest full featured riflescope and is perfect for medium and long-range shooting disciplines from hunting to quick target aquisition shooting events.
The redesigned magnification ring offers now more grip and can accommodate the Schmidt & Bender Throw Lever meaning for more applications this rifle scope is perfect suited as it is short, lightweight & compact; it doesn’t compromise a millimeter on mechanical reliability or optical performance.
Equipped with a first focal plane P4FL reticle and a low-profile elevation turret with 27 MRAD it can be used for extended range shooting especially when paired with an MOA based rifle scope mount the low profile turret nature means it can easily be combined with a red dot sight for close distances.
Thanks to the illumination turret being moved to the side focus knob this rifle scope can be easily mounted to all rifle types aswell as compact rifles with limited rail space which this scope would suit perfectly.
| Weight (g) | 870 - 930 |
| Length (mm) | 299 |
| Tube diameter (mm) | 34 |
| Magnification | 5-20x |
| Objective lens diameter (mm) | 50 |
| Field of view (m) | 7.8 - 2.0 |
| Exit pupil (mm) | 10.0 - 2.5 |
| Eye relief distance (mm) | 90 |
| Twilight factor | 15.8 - 31.6 |
| Transmission | 90 |
| Focal plane | 1. |
| Diopter | -3 to +2 |
| Parallax adjustment | yes |
| Illumination | yes |
| Adjustment | DT27 MTC LT / ST ZC CT |
| Adjustment Value/Click | 1 cm |
| Elevation (Turret) | 270 cm/100 m |
| Windage (Turret) | ±60 cm/100 m |
| Adjustment | DT35 MTC LT / ST ZC CT |
| Adjustment Value/Click | 1 cm |
| Elevation (Turret) | 350 cm/100 m |
| Elevation (Turret) | ±60 cm/100 m |
| Adjustment | DT II+ MTC LT / ST II ZC CT |
| Adjustment Value/Click | 1 cm |
| Elevation (Turret) | 305 cm/100 m |
| Elevation (Turret) | ± 60 cm/100 m |
| Adjustment | MT II MTC LT / DT II+ ZC LT |
| Adjustment Value/Click | 0.5 cm/100 m |
| Elevation (Turret) | 395 cm/100 m |
| Elevation (Turret) | 65 cm/100 m |
| Waterproof (m) | 3 m (10 / 20 / 25 On request) |
| Temperature Range | |
| Storage | -55 to 71°C |
| Function | -46 to 60°C |
| Turret Types | cw/ccw |
| Colours | Black, RAL8000 |
| Reticles | P4FL (FFP), MSR2 (FFP), Tremor3 (FFP) – (On request), Tremor5 (FFP) |
- Versatile magnification range : 5-20x
- 34mm main tube
- 27 mrad internal adjustment
- Zero click
- Locking elevation
- Capped windage
- Double turn turret
- First focal plane P4FL reticle
- More tactile clicks

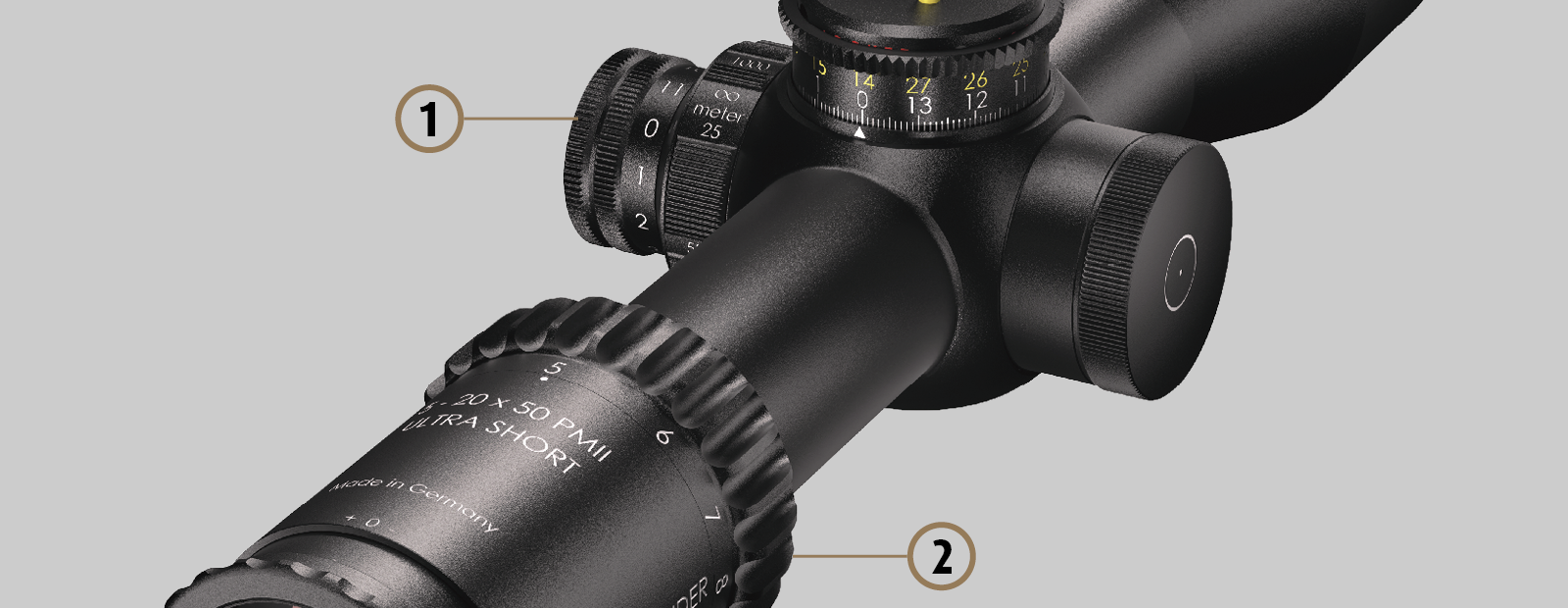

- LPI (Illumination Parallax Integrated):
The 5-20x50 PM II Ultra Short now features our new “LPI” which stands for the German words “Leucht-Parallaxe-Integriert” and means „Illumination Parallax Integrated“. This new and very easily operable illumination control is integrated into the parallax adjustment and allows a better mounting solution. It also enables a better left handed use. Although being very compact the illumination and the parallax adjustment show the familiar features: on the outer side the smaller and easy to operate illumination knob has 11 functional steps with “off” positions between each step. The bigger knob which is next to the tube operates the very precise side focus/parallax adjustment. It begins at 25 m/27 yd for close distances and goes up to infinity. Both knobs are clearly distinguished by size and rippling while the engravings of each turret can be read or adjusted while in shooting position – also with gloves.
- Magnification Ring:
The newly designed magnification ring which enables a better grip and can also accommodate due to its deep grooves our Throw Lever.
P4L Reticle:

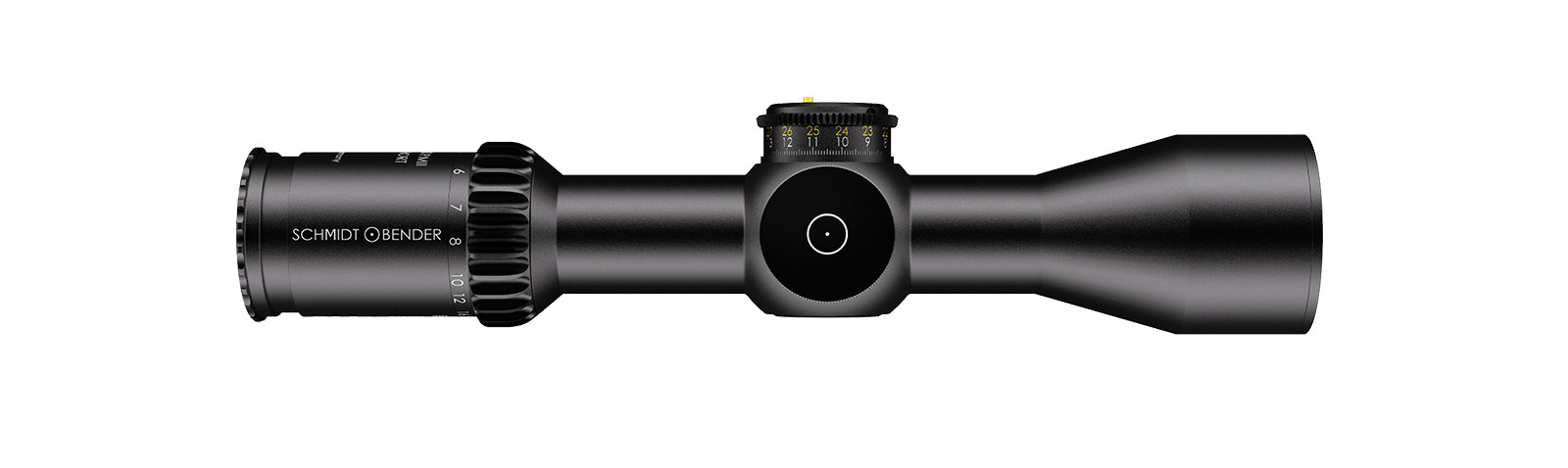

- Schmidt & Bender 5-20x50 PM II Ultra Short LPI P4FL 1cm cw DT27 MTC LT / ST ZC CT Rifle Scope.
- Tenebraex covers
- 10 year warranty
