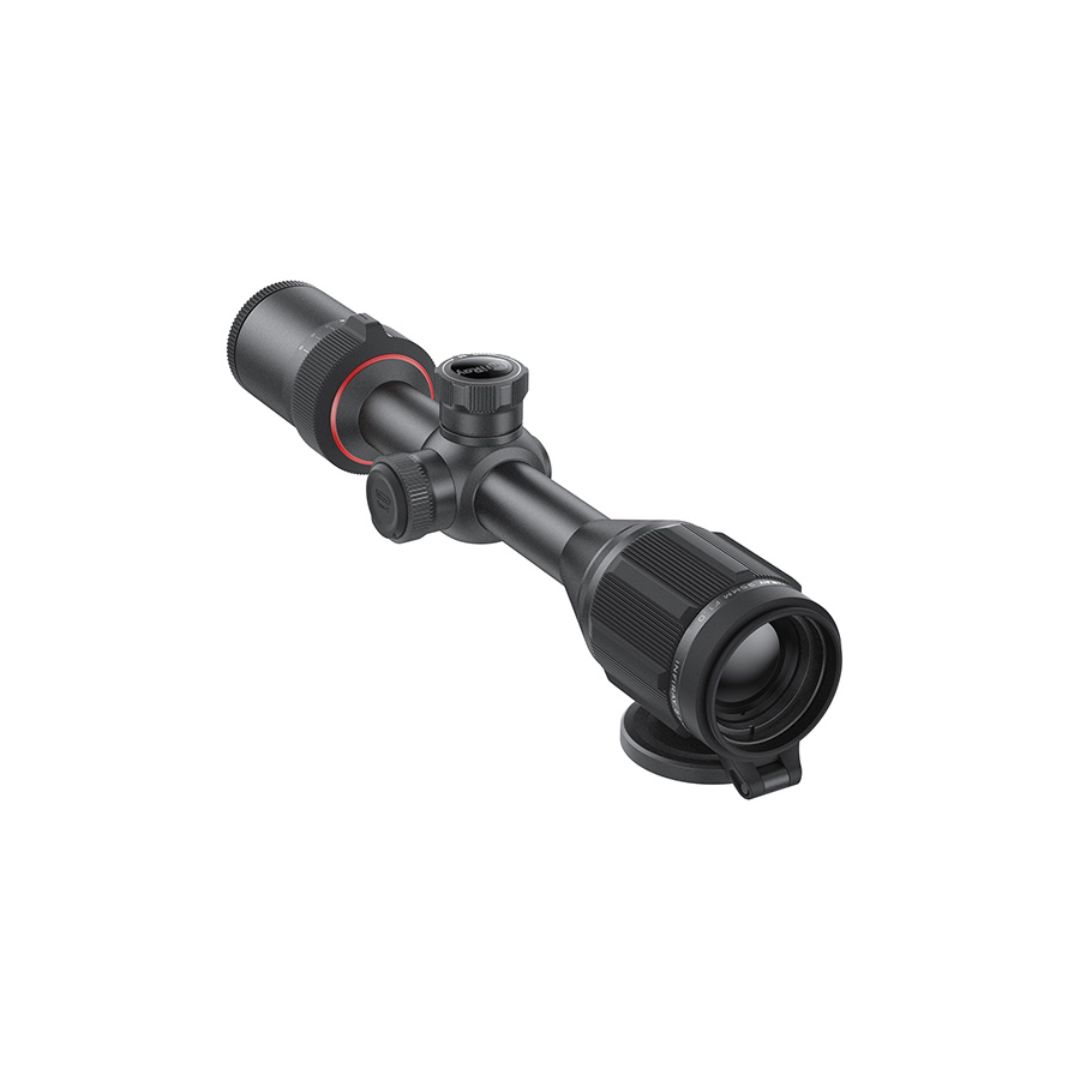

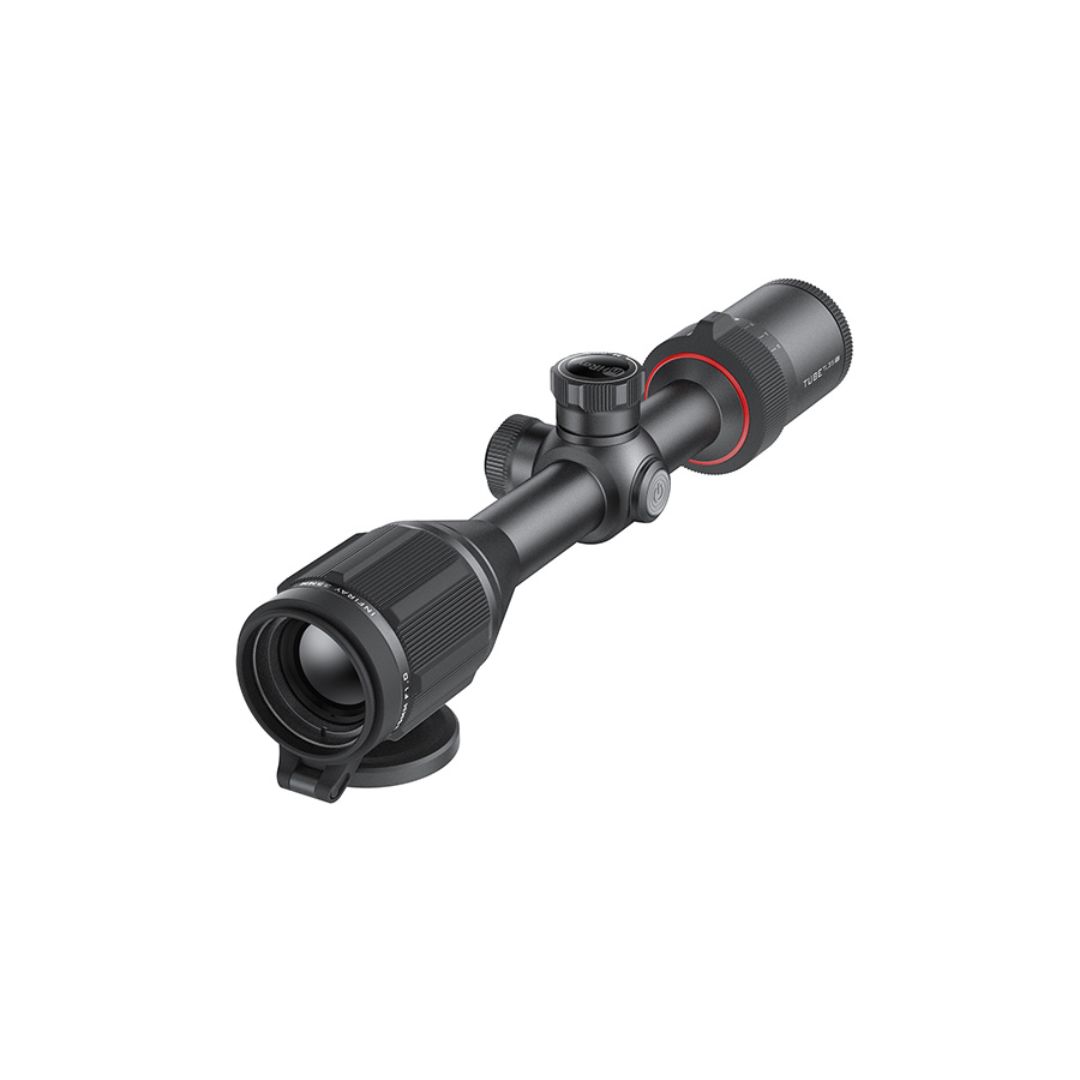

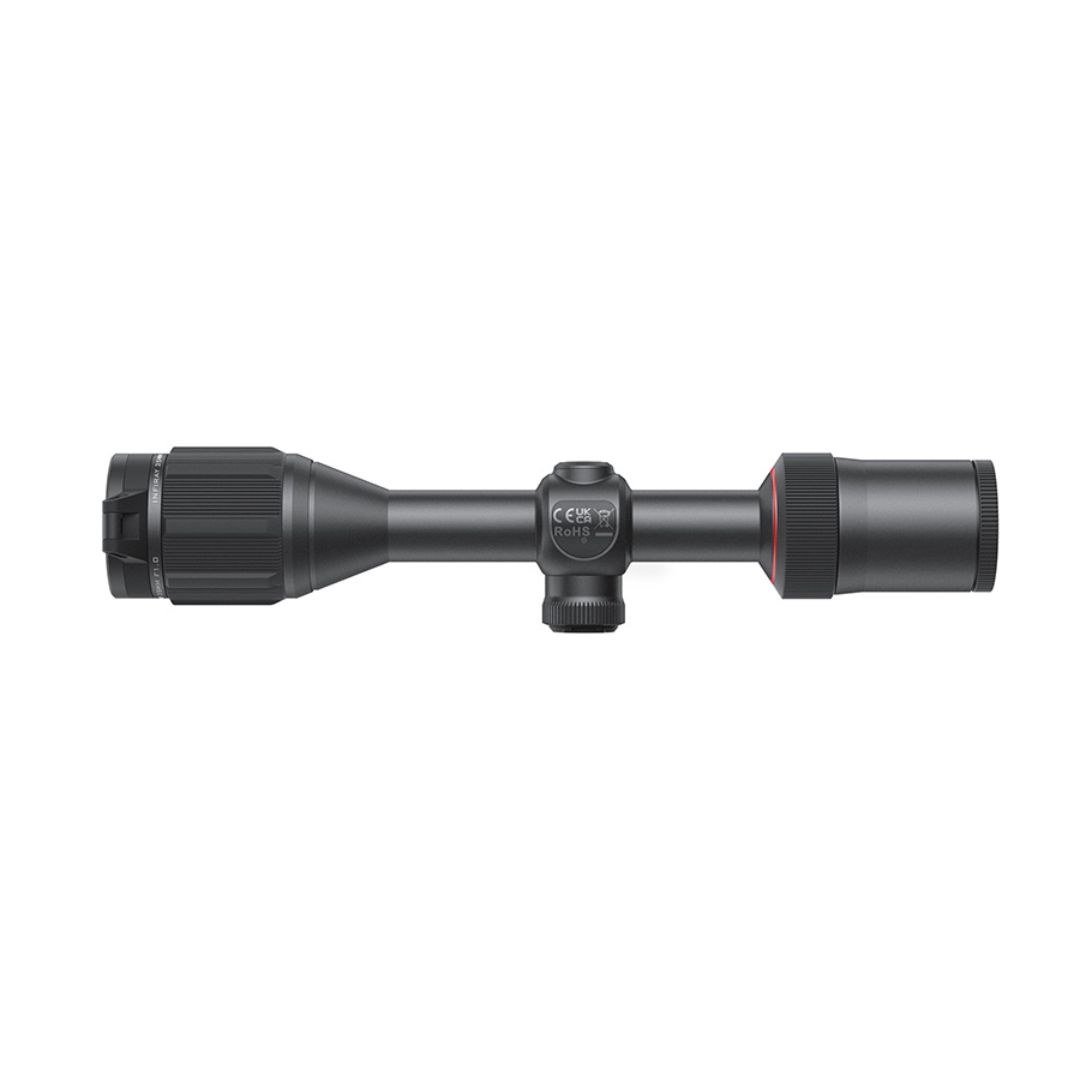

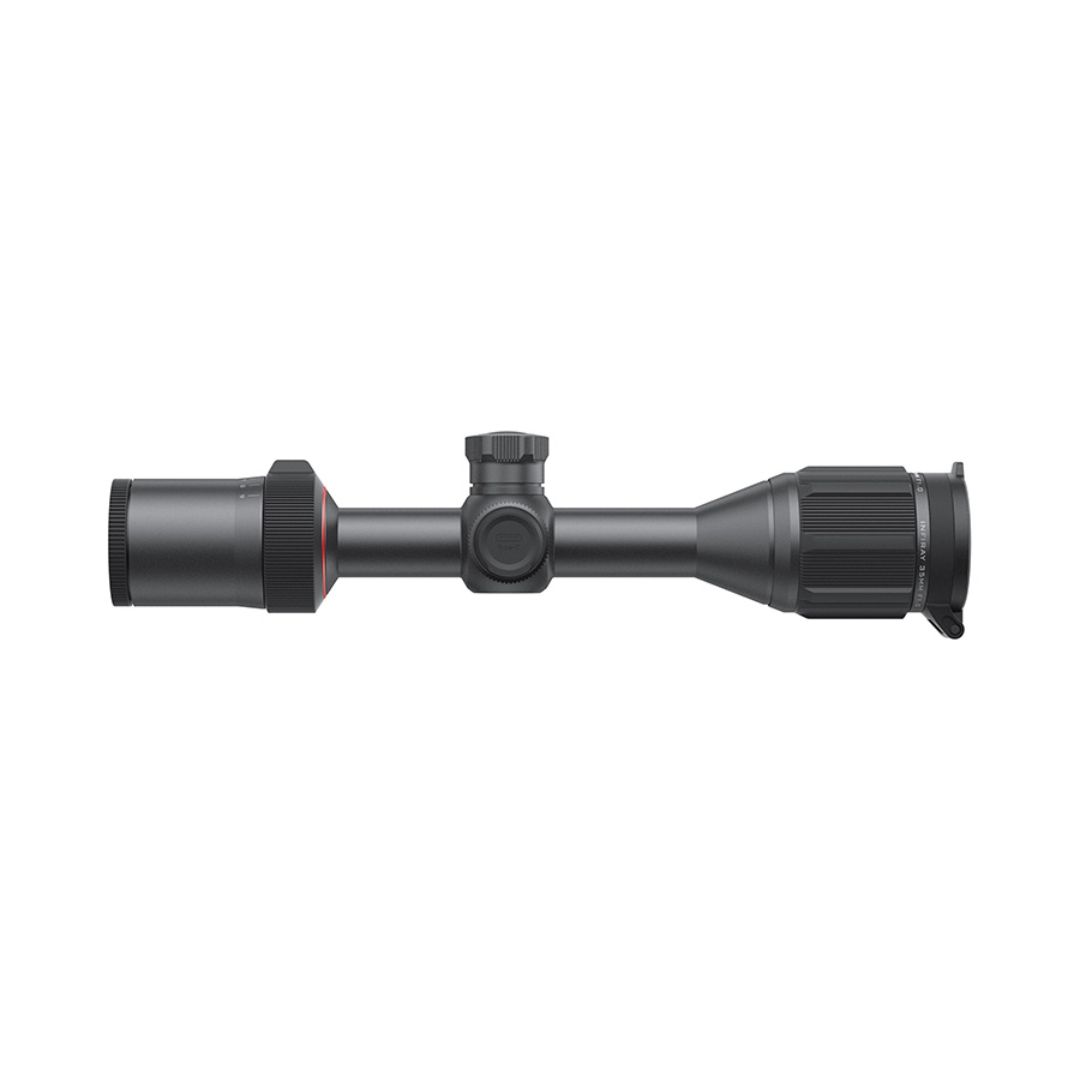

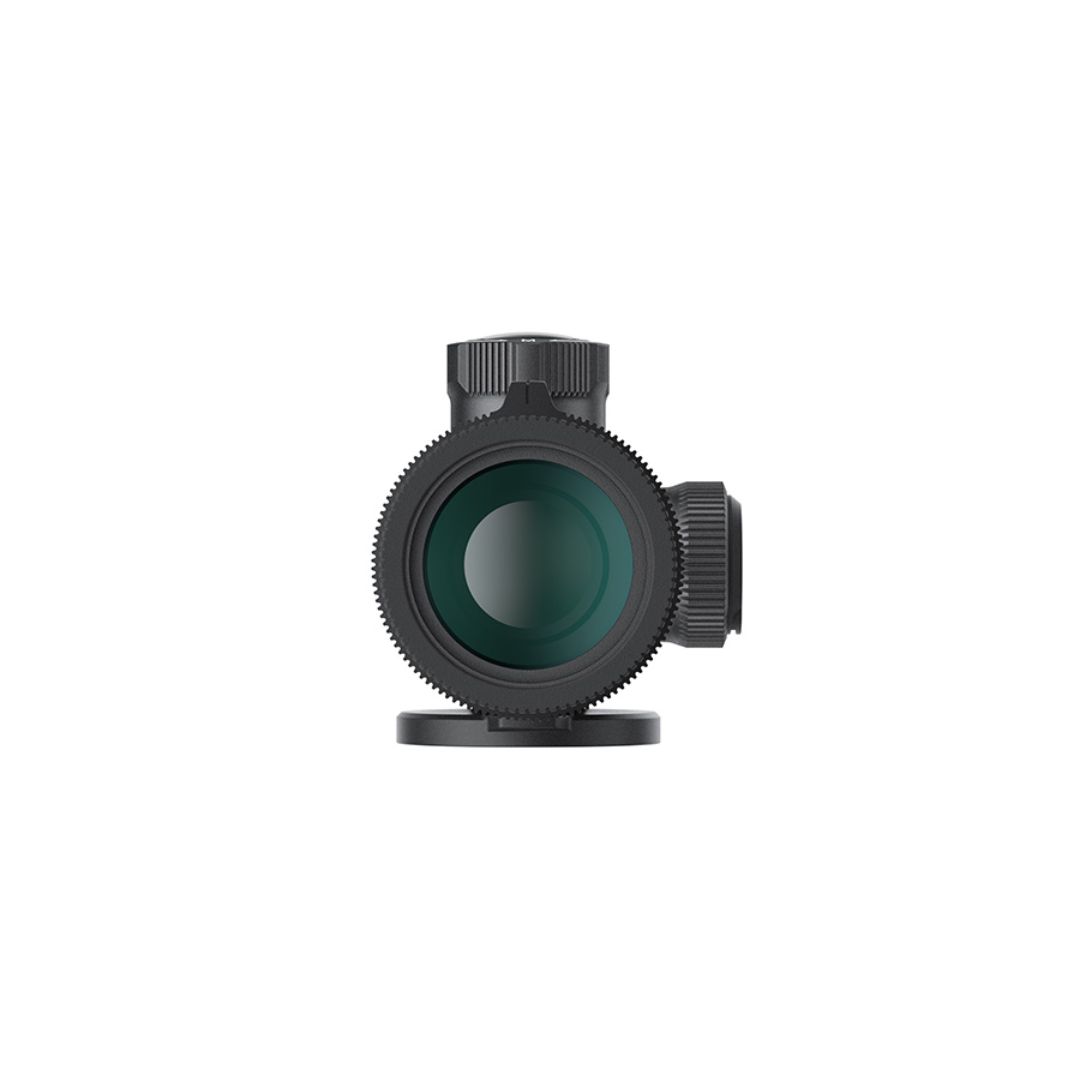

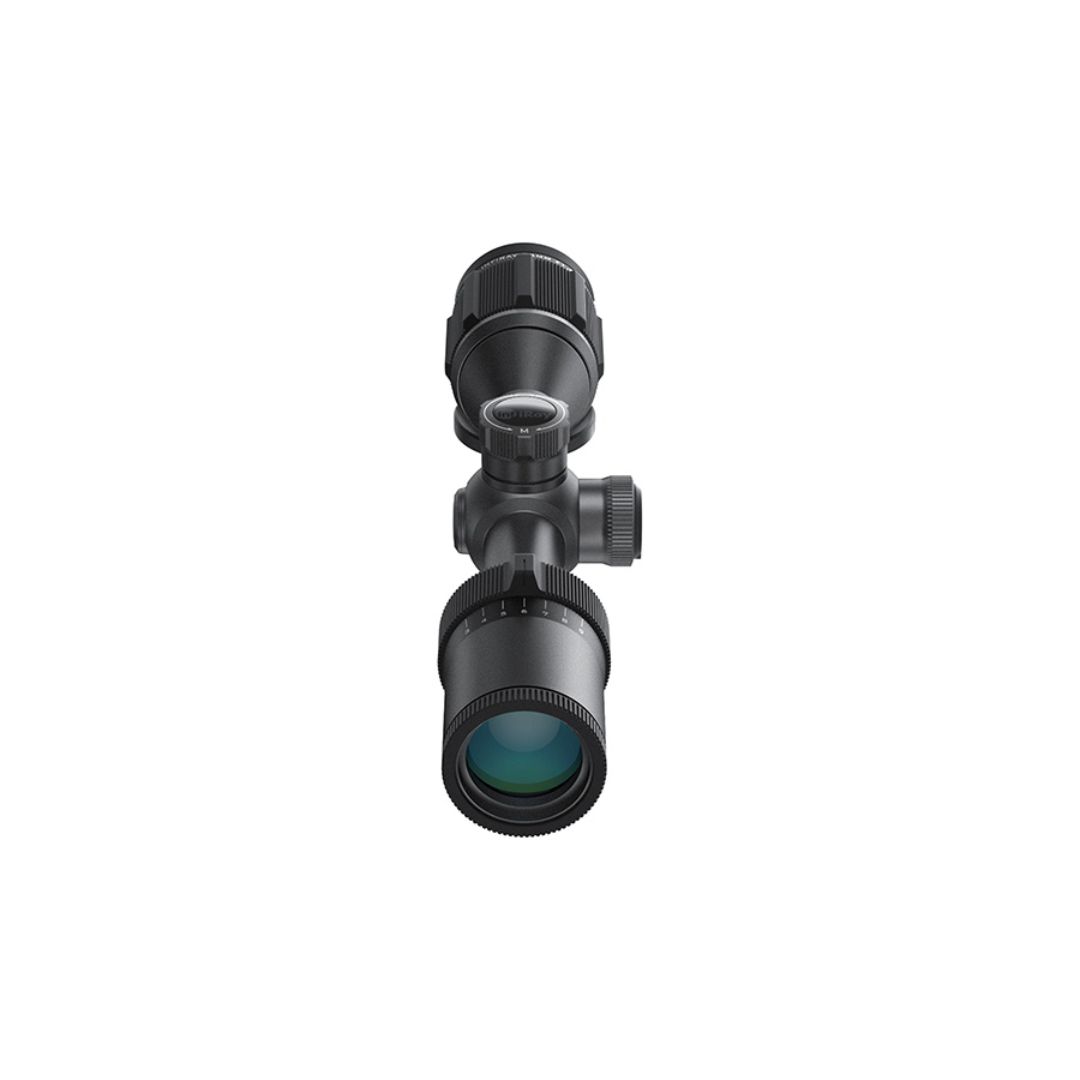

Infiray TUBE TL35SE 384x288 50Hz 30mm Thermal Imaging Rifle Scope
TUBE SE retains most of the highly recognized features of TUBE series in a surprisingly compact body with a lighter weight of only 750g. It also adopts a zoom ring to adjust magnification, a Bluetooth LRF to provide precise distance measurement and a controller instead of buttons. TUBE SE is sure to bring you an all-round easier experience.
Detector Specifications:
- Type: Vox
- Resolution: 384 x 288 pixels
- Pixel size: 12 μm
- NETD (Noise Equivalent Temperature Difference): ≤ 25 mK
- Refresh rate: 50 Hz
Optical Specifications:
- Objective Lens: 35 mm
- Field of View (H x V): 7.5° x 5.3°
- Linear Field of View (H x V): 13.2 m x 9.3 m at 100 m distance
- Optical Magnification: 3.0x
- Magnification Range: 3.0x - 9.0x
- Eye Relief: 50 mm
- Exit Pupil Diameter: 6 mm
Detection Range:
- 1800 meters (assuming target size of 1.7 m x 0.5 m and probability of detection P(n) of 99%)
Display Specifications:
- Type: AMOLED
- Resolution: 1536 x 1080 pixels
Battery Power Supply:
- Battery: Built-in 18650 battery with 3350mAh capacity
- Max. operating time: 9 hours at 22°C
- External Power Supply: 5V (Type C)
Physical Specifications:
- Wi-Fi/APP Support: Yes (InfiRay outdoor)
- Photo/Video Recorder: Supported
- Microphone (MIC): Supported
- Bluetooth: Supported
- Memory Capacity: 32GB
- IP Rating: IP67 (dust tight and protected against immersion in water up to 1 meter for 30 minutes)
- Operating Temperature: -20°C to +50°C
- Weight: 750 g
- Dimensions: 310 mm x 70 mm x 70 mm
Connections and Compatibilities:
- Max. recoil power on rifled weapon (Eo): 6000 Joules
- 12μm Sensor with NETD ≤ 25mK: Ensures perfect detailed recognition even in low thermal contrast conditions. Lighter and lower power consumption for optimal performance in harsh weather conditions.
- Easier to Carry: Weighs only 750g, 28% lighter than normal 1kg thermal riflescopes.
- Easier to Use: Zoom Ring - Adjustable magnification with a soft silicone zoom ring for comfortable, anti-slip operation.
- Controller Controls Over 90% Functions: Simplified operation with over 90% functions accessible through the controller, ensuring convenience during nighttime use.
- Easier to Shoot: Bluetooth LRF (Laser Range Finder): Distance measurement displayed on the screen when connected via Bluetooth, enhancing shooting accuracy.
- 8 Hours Working Time: Long-lasting battery life of up to 8 hours ensures continuous hunting throughout the night without the need for extra charging accessories.
- Built-in Mic: Equipped with a microphone for recording voice during operation, adding an extra layer of functionality for users.
- Infiray TUBE TL35SE 384x288 50Hz 30mm Thermal Imaging Rifle Scope
- 3 year warranty
