HIKMICRO Stellar Pro SQ50 50mm 35mK 640x512px Thermal Rifle Scope - EXPECTED MID APRIL 2022

Please be aware that during our Black Friday sales period there may be a small delay in the dispatch of your order.

SKU#HM-SQ50 HIKMICRO

REDUCED HIKMICRO Stellar Pro SQ50 50mm Pre 2024 model <35mK 640x512px 12µm Thermal Weapon Rifle Scope

Available soon Notify me when back in stock

Conventional Rifle Scope shape with a 30mm tube to make mounting and eye relief easy.
Up to 13hrs runtime from 2x internal batteries and 1x removable CR123A.
Ultra-long 2600m detection distance.
Excellent image quality from the HIKMICRO sub 35NETD Thermal sensor and F1.0 lens system.
All major settings are controlled through the conveniently located jog dial.
Recoil-activated recording and built in microphone.
Multiple Zeroing profiles (up to 5 profiles can be stored in the scope).
WiFi with access to the HIKMICRO Sight app.
Focusable lens.
64GB internal memory.
Picture-in-Picture.
IP67 rated – Water & Dustproof.
One-shot zero.

VIEW PRODUCT INFO / SPECS

Please be aware that during our Black Friday sales period there may be a small delay in the dispatch of your order.

Product Information FIND OUT MORE

DESCRIPTION

Please note: Due to distribution rights and agreements we can only sell HIK-MICRO products to residents of the UK.

The range-topping HIKMICRO Stellar Pro SQ50 Thermal 50mm Rifle Scope delivers a superb 640x512px Thermal sensor with sub-35mk NETD. This pairs with the high quality 50mm lens system to deliver the ultimate high magnification and detailed image with 2.3x magnification and up to 2600m detection distance. The Hikmicro is the perfect choice for any foxer or pest controller who is after superb image definition without breaking the bank.

The Stellar Pro SQ50 has been developed with a sleek, ergonomic design to put all of the major controls within easy reach. The innovative jog dial makes it easy to adjust the magnification and access the menu – while the three buttons on the eyepiece provide the user with access to key features such as video recording and standby mode.

The Stellar Pro SQ50 uses a conventional 30mm tube Rifle Scope chassis allowing you to attach it to your Rifle using standard scope rings. This makes it easy to mount and achieve the perfect eye relief while also maintaining the traditional appearance of your Rifle.

The HIKMICRO Stellar Pro SQ50 2.3x base magnification, the Stellar offers up to 8x digital magnification providing the Scope with a magnification range from 2.3 – 18x. You also have 4 colour palettes to choose from; Black Hot, White Hot, Red Hot and Fusion.

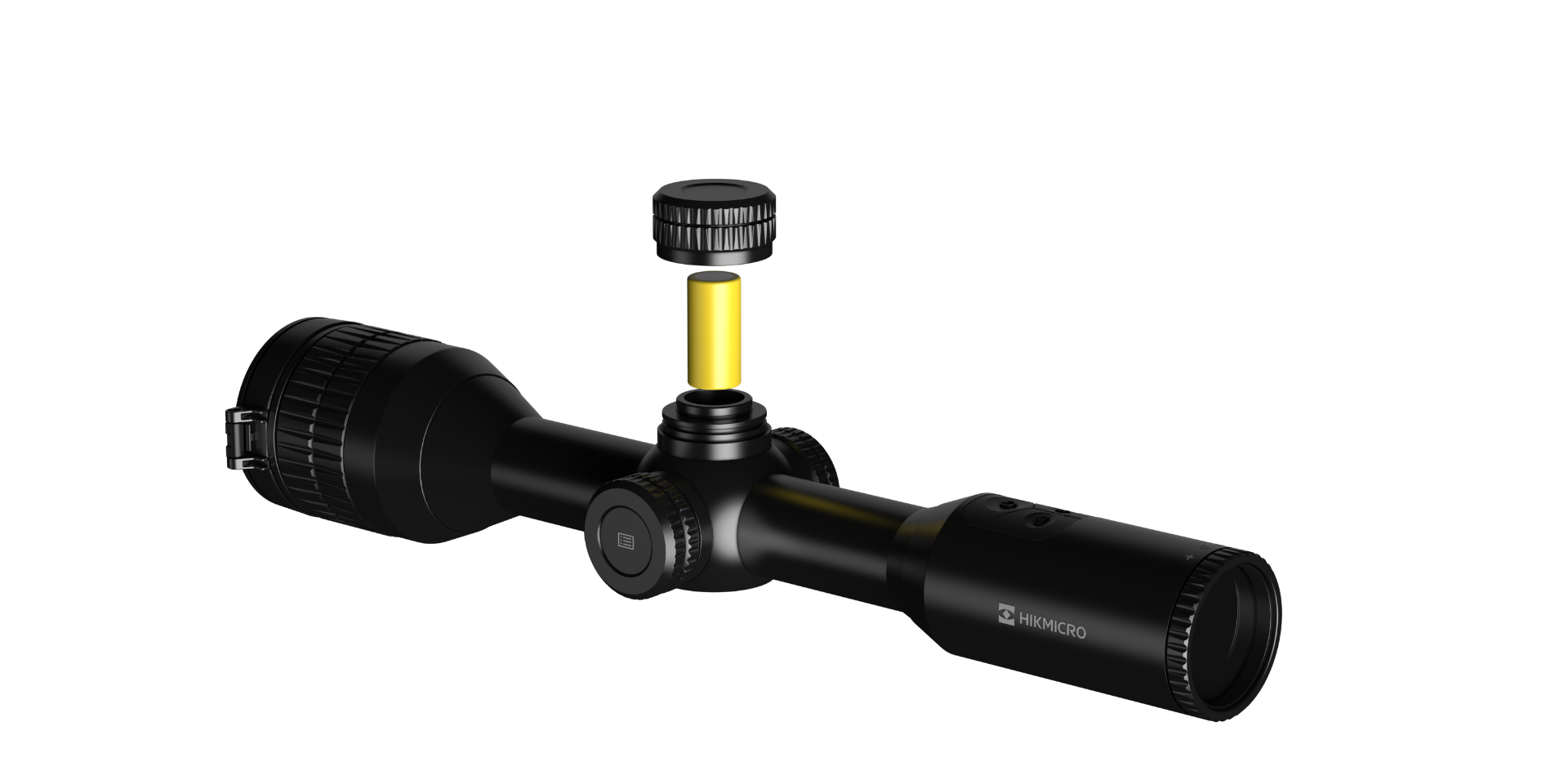

Power is provided from two internal lithium batteries which provide an outstanding 13 hours of run time. There is an additional battery compartment that accepts a removable CR123A battery. This is designed as an emergency backup and provides an additional 1 hour of runtime.

The Stellar Pro SQ50 also introduces recoil-activated recording so you can automatically capture the important parts of your shooting trips on video using the 64GB internal storage. The Stellar series is also fitted with a microphone to capture sound with your videos.

Zeroing has been simplified with the inclusion of freeze-frame and magnification during setup with your Rifle. Advanced software provides up to 5 zeroing profiles allowing you to use the Stellar on multiple Rifles.

Under the cap that traditionally houses the windage adjustment, you will find a USB-C port that allows you to transfer data and recharge the Scope. This also allows you to power the Stellar from an external USB power bank.

Use the inbuilt Wi-Fi to connect to the HIKMICRO Sight app and stream, record and control the Stellar from your phone, tablet or another mobile device. You can stream in real-time to share your hunting experience with a friend. The app also gives you access to all of the major controls like colour palettes, magnification, brightness and contrast. This makes it very easy for the user to configure the Stellar to match their preferred Thermal image.

SPECS


SKU	HM-SH35	HM-SQ35	HM-SH50	HM-SQ50

Main:
Sensor	384×288px @ 12µm	640 x 512 @ 12µm	384×288px @ 12µm	640 x 512 @ 12µm
Objective Lens (Focal length)	35 mm / F1.0	35 mm / F1.0	50 mm / F1.0	50 mm / F1.0
Detection Range (Human)	1800m	1800m	2600m	2600m
Magnification	2.7x	1.62x	3.8x	2.3x

Sensor:
Type	Uncooled Focal Plane Arrays	Uncooled Focal Plane Arrays	Uncooled Focal Plane Arrays	Uncooled Focal Plane Arrays
Resolution, pixels	384 × 288 px	640 x 512 px	384 × 288 px	640 x 512 px
Pixel pitch, µm	12µm	12µm	12µm	12µm
Frame rate, Hz	50 Hz	50 Hz	50 Hz	50 Hz
NETD	<35mK	<35mK	<35mK	<35mK

Optics:
Objective lens	F1.0	F1.0	F1.0	F1.0
Focal Length	35mm	35mm	50mm	50mm
Magnification (Optical)	2.7x	1.62x	3.8x	2.3x
Magnification (Digital)	1x, 2x, 4x, 8x	1x, 2x, 4x, 8x	1x, 2x, 4x, 8x	1x, 2x, 4x, 8x
Field of view	7.53° × 5.65°	12.52° × 10.03°	5.28° × 3.96°	8.80° × 7.03°

Display:
Type	9.9mm OLED	9.9mm OLED	9.9mm OLED	9.9mm OLED
Resolution, Pixels	1024 × 768 px	1024 × 768 px	1024 × 768 px	1024 × 768 px
Eye Relief	60mm	60mm	60mm	60mm
Colour Palettes	Black Hot, White Hot, Red Hot, Fusion	Black Hot, White Hot, Red Hot, Fusion	Black Hot, White Hot, Red Hot, Fusion	Black Hot, White Hot, Red Hot, Fusion
Picture-in-Picture	Yes	Yes	Yes	Yes

Reticle options:
Number of preloaded reticles	5 Reticle choices	5 Reticle choices	5 Reticle choices	5 Reticle choices
Reticle Colours	White, Green, Red	White, Green, Red	White, Green, Red	White, Green, Red

Video Recorder:
Video recording	Yes	Yes	Yes	Yes
Picture snapshot	Yes	Yes	Yes	Yes
Audio recording	Yes	Yes	Yes	Yes
Recoil-activated recording	Yes	Yes	Yes	Yes
Build-in memory, Gb	64 Gb	64 Gb	64 Gb	64 Gb

Additional features:
Hot Tracking	YES	YES	YES	YES
WiFI	YES	YES	YES	YES
HIKMICRO Connect App support	YES	YES	YES	YES

Environmental:
Recoil resistance	6750 J	6750 J	6750 J	6750 J
Degree of protection, IP code	IP67	IP67	IP67	IP67
Water protection	Protected against temporary submersion in water	Protected against temporary submersion in water	Protected against temporary submersion in water	Protected against temporary submersion in water
Operating temperature range	-30 °C to 55 °C	-30 °C to 55 °C	-30 °C to 55 °C	-30 °C to 55 °C

Weight & Size:
Dimensions, mm	407mm × 78.1 mm × 75.9 mm	407mm × 78.1 mm × 75.9 mm	407mm × 78.1 mm × 75.9 mm	407mm × 78.1 mm × 75.9 mm
Weight, kg	890 g	890 g	890 g	890 g

Power Supply:
Operating time on battery (WiFi & Hot tracking disabled)	Up to 15 hours continuous running	Up to 13 hours continuous running	Up to 15 hours continuous running	Up to 13 hours continuous running
Charging interface	USB-C	USB-C	USB-C	USB-C
Battery type	2x Internal rechargable Lithium batteries 1x Replaceable CR123	2x Internal rechargable Lithium batteries 1x Replaceable CR123	2x Internal rechargable Lithium batteries 1x Replaceable CR123	2x Internal rechargable Lithium batteries 1x Replaceable CR123

Warranty Period Main Unit	3 Years	3 Years	3 Years	3 Years

SKU	HM-SH35	HM-SQ35	HM-SH50	HM-SQ50

Reticle 1		640, 12mkm, 35mm SQ35			640, 12mkm, 50mm SQ50			384, 12mkm, 50mm SH50			384, 12mkm, 35mm SH35
		size on target			size on target			size on target			size on target
		pixel	MOA	mrad	pixel	MOA	mrad	pixel	MOA	mrad	pixel	MOA	mrad
	A	154	120.70	35.11	154	84.60	24.61	154	47.63	13.85	154	68.01	19.78
	B	154	112.99	32.87	154	79.26	23.05	154	47.61	13.85	154	67.97	19.77
	C	44	34.49	10.03	44	24.17	7.03	44	13.61	3.96	44	19.43	5.65
	D	12	8.80	2.56	12	6.18	1.80	12	3.71	1.08	12	5.30	1.54
	E	12	9.41	2.74	12	6.59	1.92	12	3.71	1.08	12	5.30	1.54
	F	44	32.28	9.39	44	22.64	6.59	44	13.60	3.96	44	19.42	5.65

Reticle 2		640, 12mkm, 35mm SQ35			640, 12mkm, 50mm SQ50			384, 12mkm, 50mm SH50			384, 12mkm, 35mm SH35
		size on target			size on target			size on target			size on target
		pixel	MOA	mrad	pixel	MOA	mrad	pixel	MOA	mrad	pixel	MOA	mrad
	A	133	104.24	30.32	133	73.06	21.25	133	41.13	11.97	133	58.74	17.09
	B	133	97.59	28.39	133	68.45	19.91	133	41.12	11.96	133	58.70	17.08
	C	21	15.41	4.48	21	10.81	3.14	21	6.49	1.89	21	9.27	2.70
	D	21	16.46	4.79	21	11.54	3.36	21	6.49	1.89	21	9.27	2.70

Reticle 3		640, 12mkm, 35mm SQ35			640, 12mkm, 50mm SQ50			384, 12mkm, 50mm SH50			384, 12mkm, 35mm SH35
		size on target			size on target			size on target			size on target
		pixel	MOA	mrad	pixel	MOA	mrad	pixel	MOA	mrad	pixel	MOA	mrad
	A	133	104.24	30.32	133	73.06	21.25	133	41.13	11.97	133	58.74	17.09
	B	133	97.59	28.39	133	68.45	19.91	133	41.12	11.96	133	58.70	17.08
	C	21	15.41	4.48	21	10.81	3.14	21	6.49	1.89	21	9.27	2.70
	D	21	16.46	4.79	21	11.54	3.36	21	6.49	1.89	21	9.27	2.70

Reticle 4		640, 12mkm, 35mm SQ35			640, 12mkm, 50mm SQ50			384, 12mkm, 50mm SH50			384, 12mkm, 35mm SH35
		size on target			size on target			size on target			size on target
		pixel	MOA	mrad	pixel	MOA	mrad	pixel	MOA	mrad	pixel	MOA	mrad
	A	110	86.21	25.08	140	76.91	22.37	170	52.58	15.29	170	75.08	21.84
	B	88	64.57	18.78	120	61.76	17.96	136	42.05	12.23	136	60.02	17.46
	C	30	23.51	6.84	44	24.17	7.03	37	11.44	3.33	37	20.76	6.04
	D	8	5.87	1.71	8	4.12	1.20	8	2.47	0.72	8	3.53	1.03
	E	40	29.35	8.54	56	28.82	8.38	43	13.29	3.87	43	18.98	5.52
	F	4	3.14	0.91	4	2.20	0.64	4	1.24	0.36	4	1.77	0.51
	G	4	3.14	0.91	4	2.20	0.64	4	1.24	0.36	4	1.77	0.51
	H	4	2.93	0.85	4	2.06	0.60	4	1.24	0.36	4	1.77	0.51
	I	2	1.47	0.43	2	1.03	0.30	2	0.62	0.18	2	0.88	0.26
	J	2	1.57	0.46	2	1.10	0.32	2	0.62	0.18	2	0.88	0.26
	K	11	8.07	2.35	14	7.21	2.10	24	7.42	2.16	17	7.50	2.18
	L	11	8.62	2.51	14	7.69	2.24	24	7.42	2.16	17	7.51	2.18

1. A represents the vertical distance from the centre point to the top of the below small triangle. ( Blue line)
2. B represents the horizon distance from the centre point to the top of the right-hand small triangle. ( yellow line)
3. C&E represents the distance from the top of the triangle to the bottom of the pentagon. ( green range)
4. D&F is the base of the pentagon.
5. G&I is the height of the small triangle.
6. H&J is half the base of the triangle.
7. K is the minimum interval on the horizon.
8. L is the minimum interval on vertical.

Reticle 5		640, 12mkm, 35mm SQ35			640, 12mkm, 50mm SQ50			384, 12mkm, 50mm SH50			384, 12mkm, 35mm SH35
		size on target			size on target			size on target			size on target
		pixel	MOA	mrad	pixel	MOA	mrad	pixel	MOA	mrad	pixel	MOA	mrad
	A	6	4.40	1.28	6	3.09	0.90	6	1.86	0.54	6	2.65	0.77
	B	6	4.70	1.37	6	3.30	0.96	6	1.86	0.54	6	2.65	0.77
	C	3	2.35	0.68	3	1.65	0.48	3	0.93	0.27	3	1.32	0.39
	D	3	2.20	0.64	3	1.54	0.45	3	0.93	0.27	3	1.32	0.39
	E	7			7			7			7
	F	7			7			7			7

FEATURES

Conventional Rifle Scope shape with a 30mm tube to make mounting and eye relief easy.
Up to 13hrs runtime from 2x internal batteries and 1x removable CR123A.
Ultra-long 2600m detection distance.
Excellent image quality from the HIKMICRO sub 35NETD Thermal sensor and F1.0 lens system.
All major settings are controlled through the conveniently located jog dial.
Recoil-activated recording and built in microphone.
Multiple Zeroing profiles (up to 5 profiles can be stored in the scope).
WiFi with access to the HIKMICRO Sight app.
Focusable lens.
64GB internal memory.
Picture-in-Picture.
IP67 rated – Water & Dustproof.
One-shot zero.
