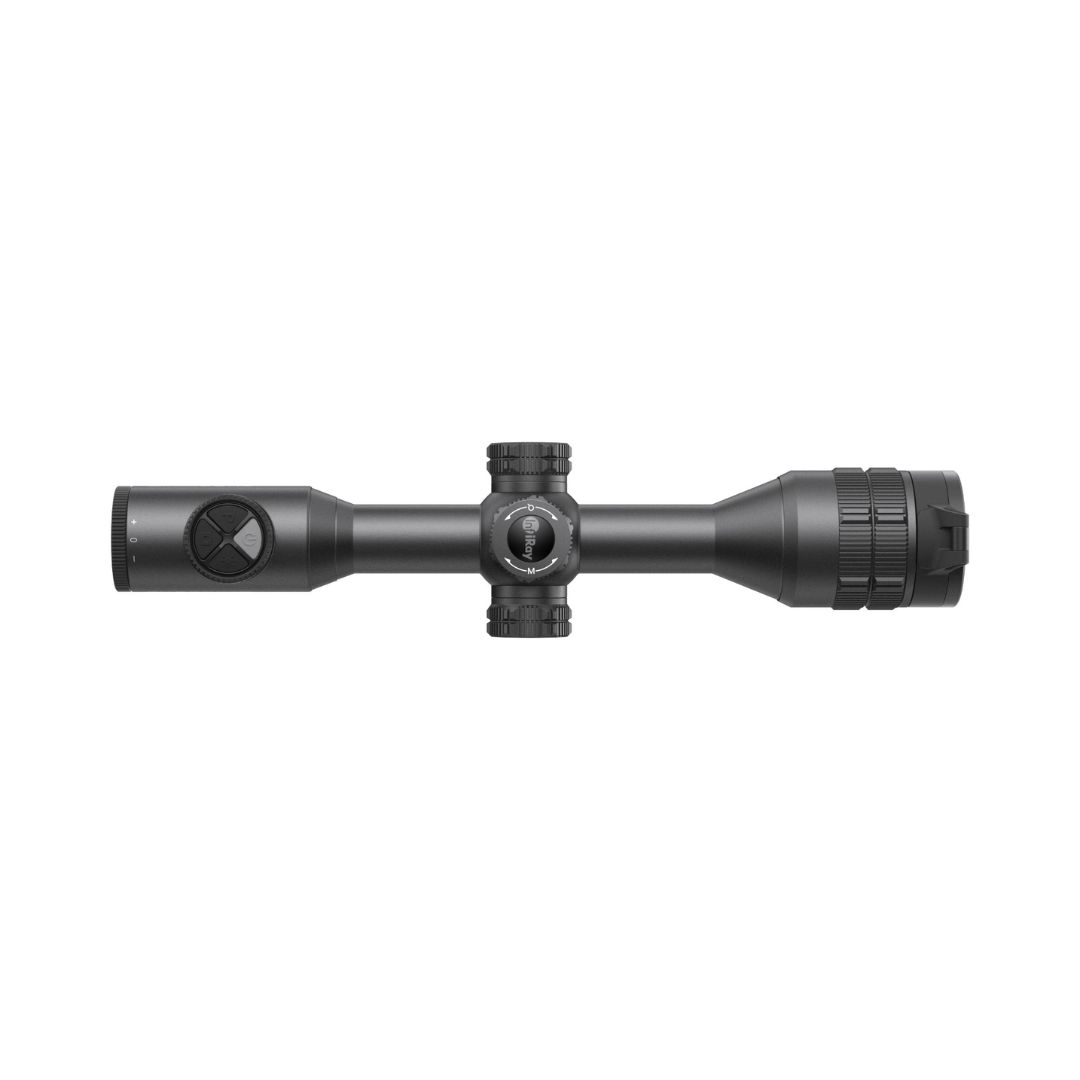

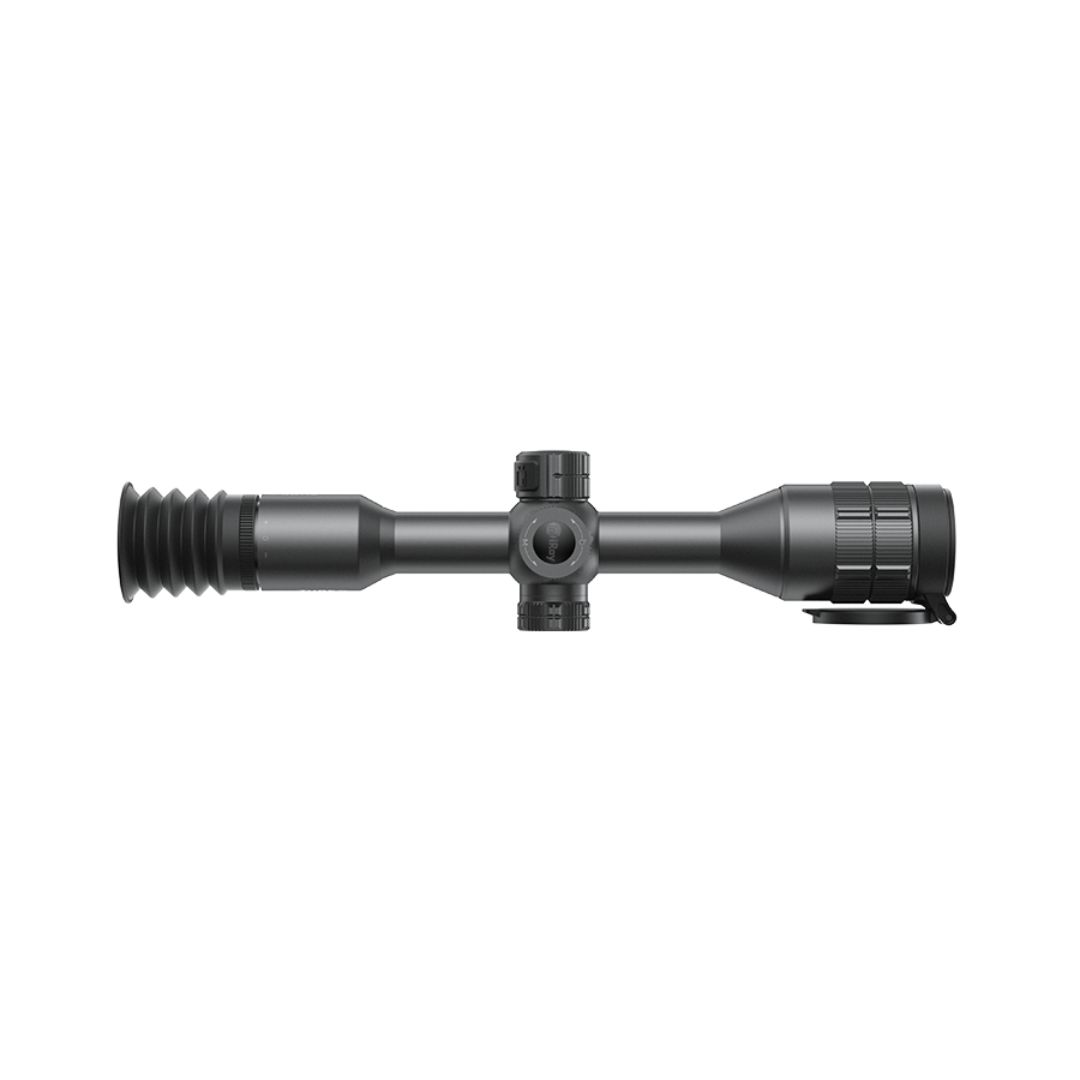

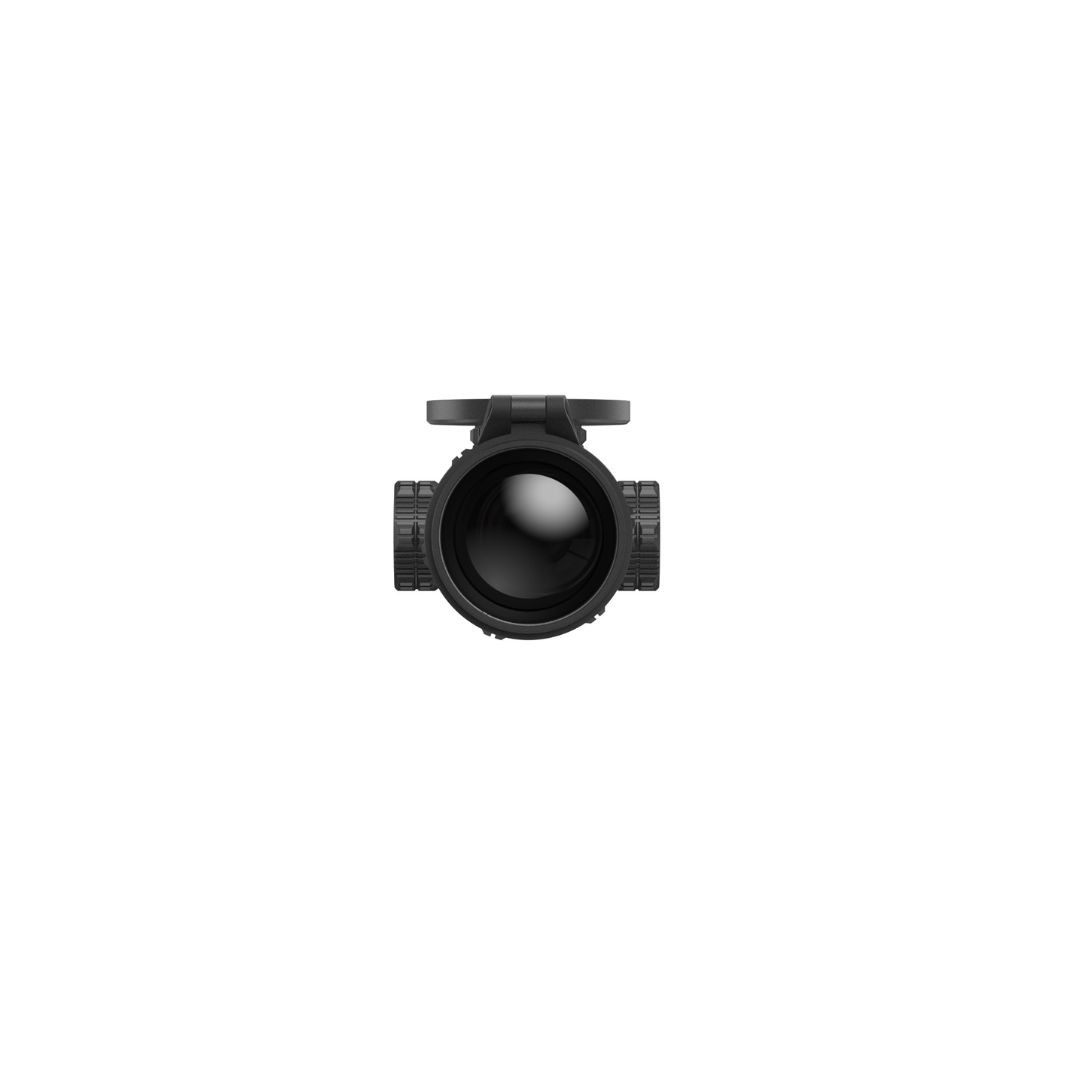

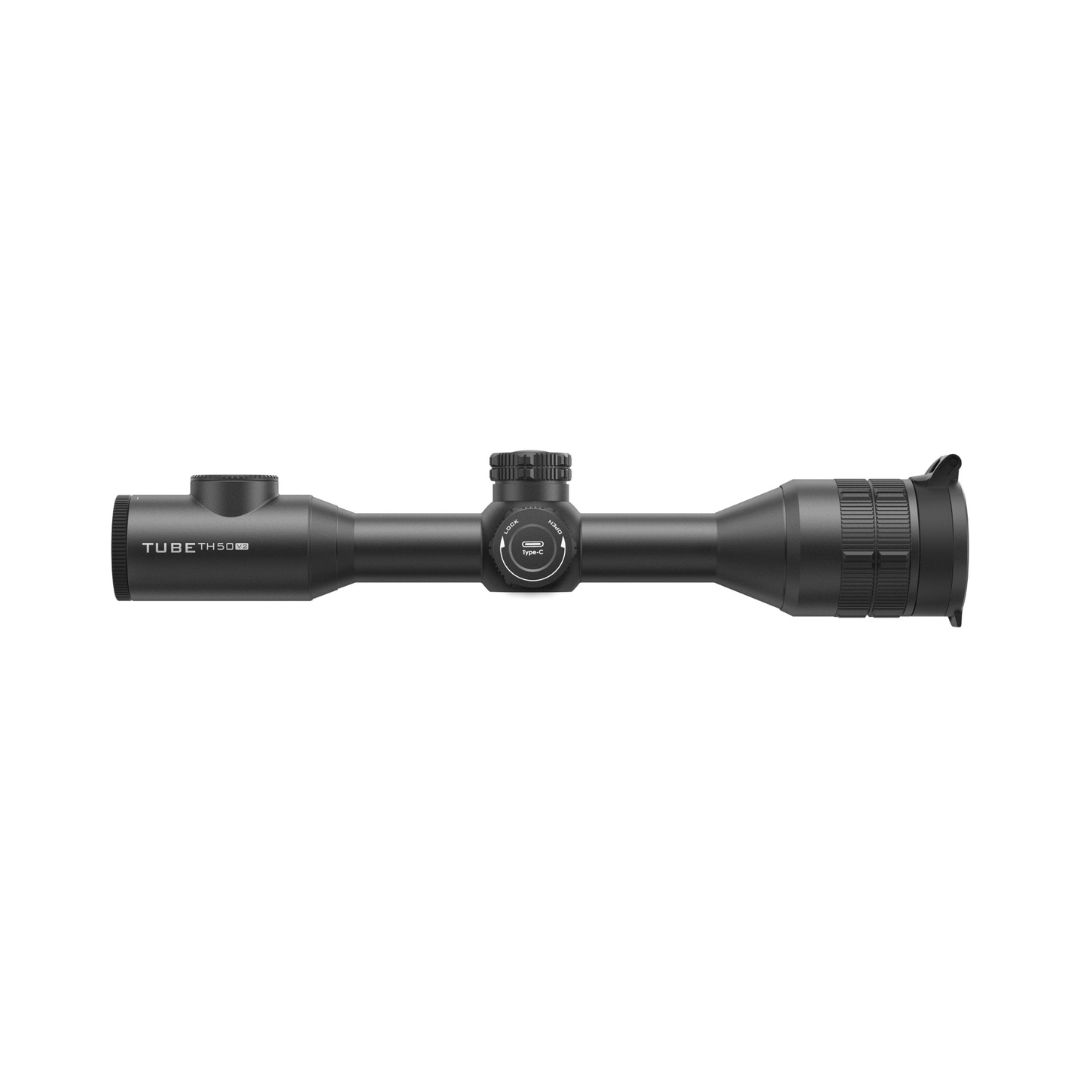

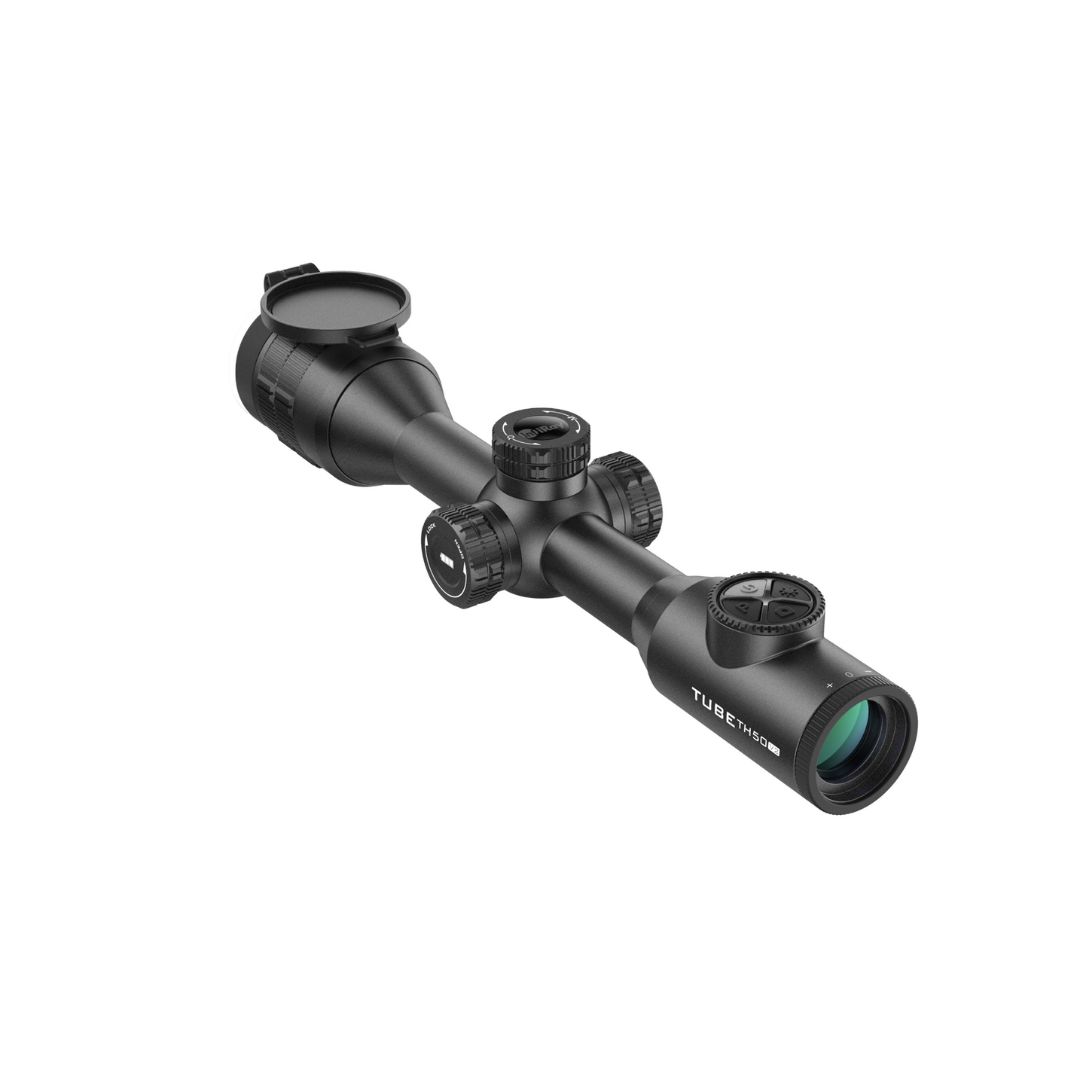

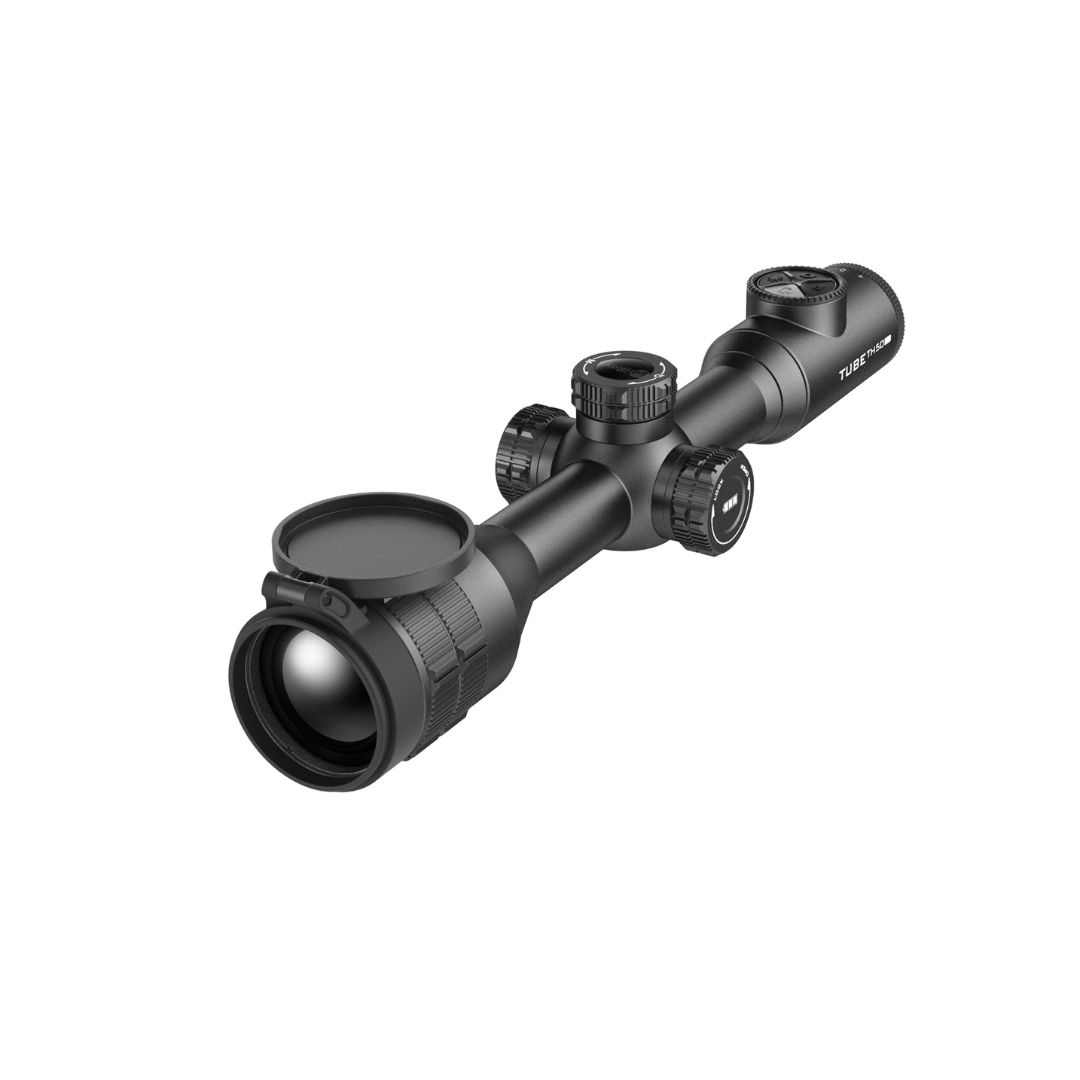

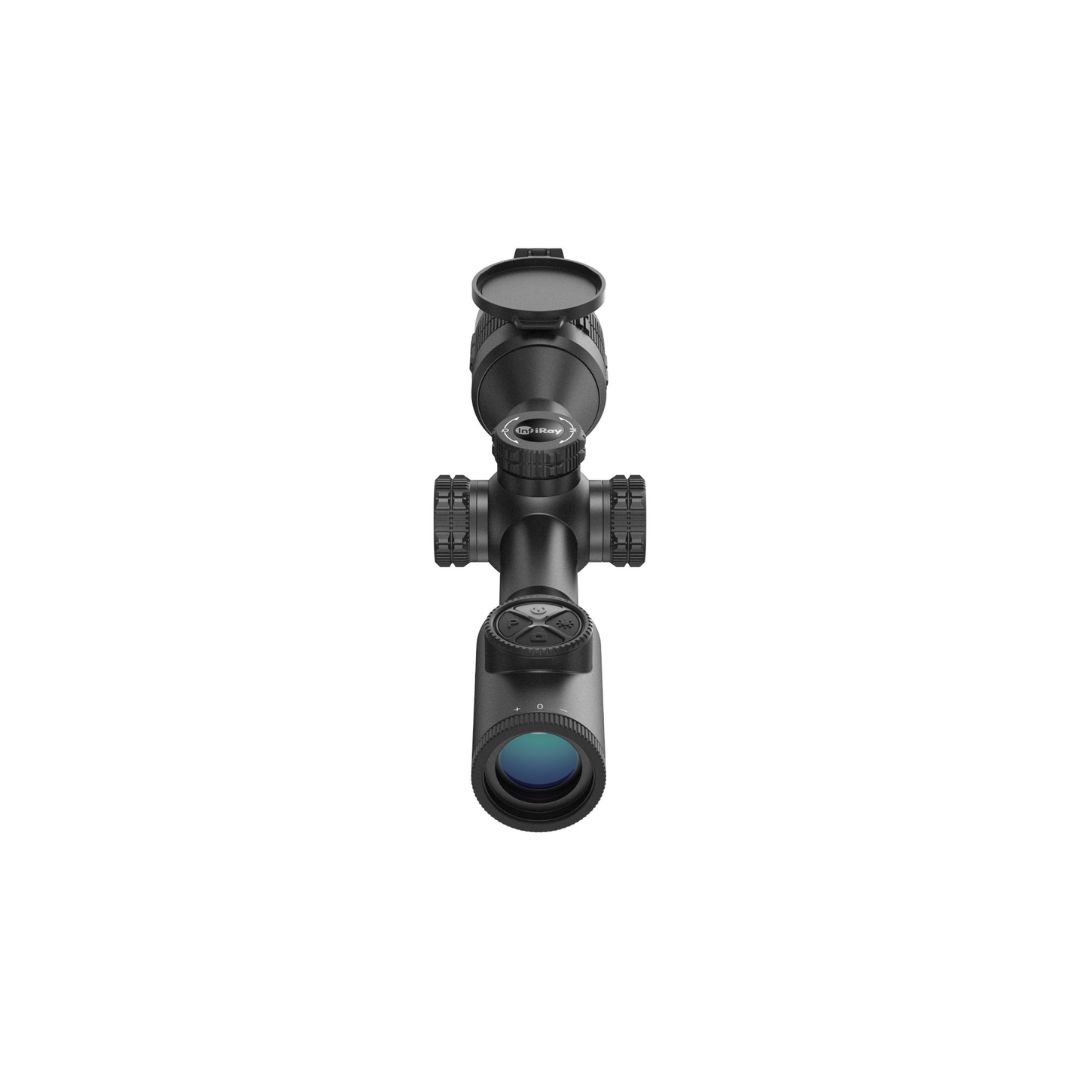

EX-DISPLAY InfiRay TH50 V2 TUBE 640x512 <40mK NETD 50mm Thermal Rifle Scope
- Optional LRF (Upgraded): Provides distance measurement on the screen when connected via Bluetooth, enhancing shooting accuracy.
- Built-in Microphone (Upgraded): Equipped with MIC function for voice recording during operation.
- Traditional Day Scope Appearance: Housing allows mounting with standard 30mm rings like a typical day scope.
- 12μm 640*512 High Capacity Sensor: Top-end thermal scope equipped with industry-leading InfiRay 12μm 640x512 sensor and advanced image processing algorithm.
- 1.03” AMOLED Display with 2560x2560 Resolution: Provides finest observing experience with excellent optical parameters, reducing visual fatigue during long-time observation.
- Ultra-clear Mode: Provides clear imaging even in adverse weather conditions like heavy fog and rain.
- More Accurate Zeroing: Achieves 1.2cm (TH50V2) per unit at 100m for accurate zeroing, with smaller scale units for precision.
- Smooth Magnification: Magnifies imaging smoothly without flicker or stutter, ensuring user comfort during observation.
- 2600m Detection Range: Combines extraordinary sensor and powerful 50mm optics to achieve a detection range of up to 2600m.
This product comes in its original box along with a carry case, charging lead and plug adapters.
NO OTHER ACCESSORIES INCLUDED.
Please Note: Photos of this product have been taken from the original listing. The product's appearance may slightly differ based on its grading. For example, there may be light cosmetic scratches or scuffs.
The TH50V2 expands on the success of the TH50 with the addition of the optional LRF and built-in mic function, maintaining the excellent features such as 12um 640x512 sensor, 50mm optics and 2560x2560 1.03” AMOLED display.
The new TH50V2 is designed to present unprecedented comfort, super clarity and absolute precision.
Model: TH50 V2
Detector Specifications:
- Type: Uncooled Vox
- Resolution, pixels: 640 × 512
- Pixel Size, μm: 12
- NETD, mk: ≤ 25
- Frame Rate, Hz: 50
Optical Specifications:
- Objective Lens, mm: 50
- Field of View (H×V), º: 8.8 × 7.0
- Linear Field of View (H×V), m at 100m: 15.4×12.3
- Optical Magnification, ×: 3.5
- Digital Zoom, ×: 1 ~ 4
- Eye Relief, mm: 50
- Exit Pupil Diameter, mm: 6
- Diopter, D: -5 ~ +3.5
- Detection Range, m: 2600 (Target Size: 1.7m×0.5m, P(n)=99%)
Display Specifications:
- Type: AMOLED
- Resolution: 2560 × 2560 (1.03”)
Battery Power Supply:
- Battery: Built-in battery / 6600mAh + replaceable 18500 battery / 3.7V
- *Max. Operating Time (22ºC), h: 8.5
- External Power Supply: 5V (Type C)
Functions:
- Wi-Fi / APP: Support (InfiRay outdoor)
- Photo / Video Recorder: Support
- MIC: Support
- Bluetooth: Support
Operational Characteristics:
- Memory Capacity, GB: 32
- IP rating: IP67
- Operating Temperature, °C: -20 ~ +50
- Max. recoil power on rifled weapon (Eo), Joules: 6000
- Compatible mounts: Standard 30 mm rings
- Weight (without the 18500 battery), g: < 950
- Dimension, mm: 365 × 85 × 75
- Optional LRF (Upgraded): Provides distance measurement on the screen when connected via Bluetooth, enhancing shooting accuracy.
- Built-in Microphone (Upgraded): Equipped with MIC function for voice recording during operation.
- Traditional Day Scope Appearance: Housing allows mounting with standard 30mm rings like a typical day scope.
- 12μm 640*512 High Capacity Sensor: Top-end thermal scope equipped with industry-leading InfiRay 12μm 640x512 sensor and advanced image processing algorithm.
- 1.03” AMOLED Display with 2560x2560 Resolution: Provides finest observing experience with excellent optical parameters, reducing visual fatigue during long-time observation.
- Ultra-clear Mode: Provides clear imaging even in adverse weather conditions like heavy fog and rain.
- More Accurate Zeroing: Achieves 1.2cm (TH50V2) per unit at 100m for accurate zeroing, with smaller scale units for precision.
- Smooth Magnification: Magnifies imaging smoothly without flicker or stutter, ensuring user comfort during observation.
- 2600m Detection Range: Combines extraordinary sensor and powerful 50mm optics to achieve a detection range of up to 2600m.
This product comes in its original box along with a carry case, charging lead and plug adapters.
NO OTHER ACCESSORIES INCLUDED.
- OPW 12 Month Warranty
