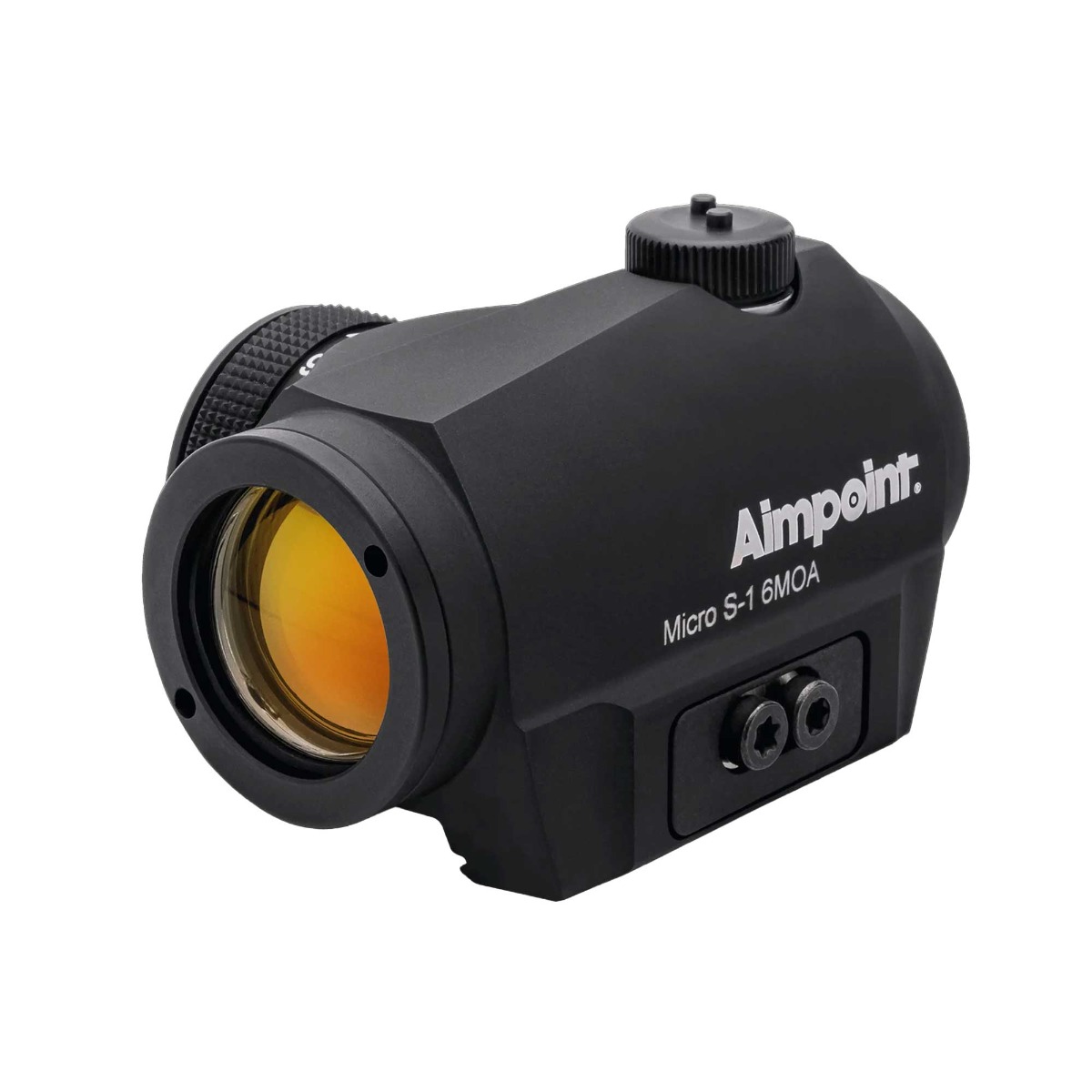

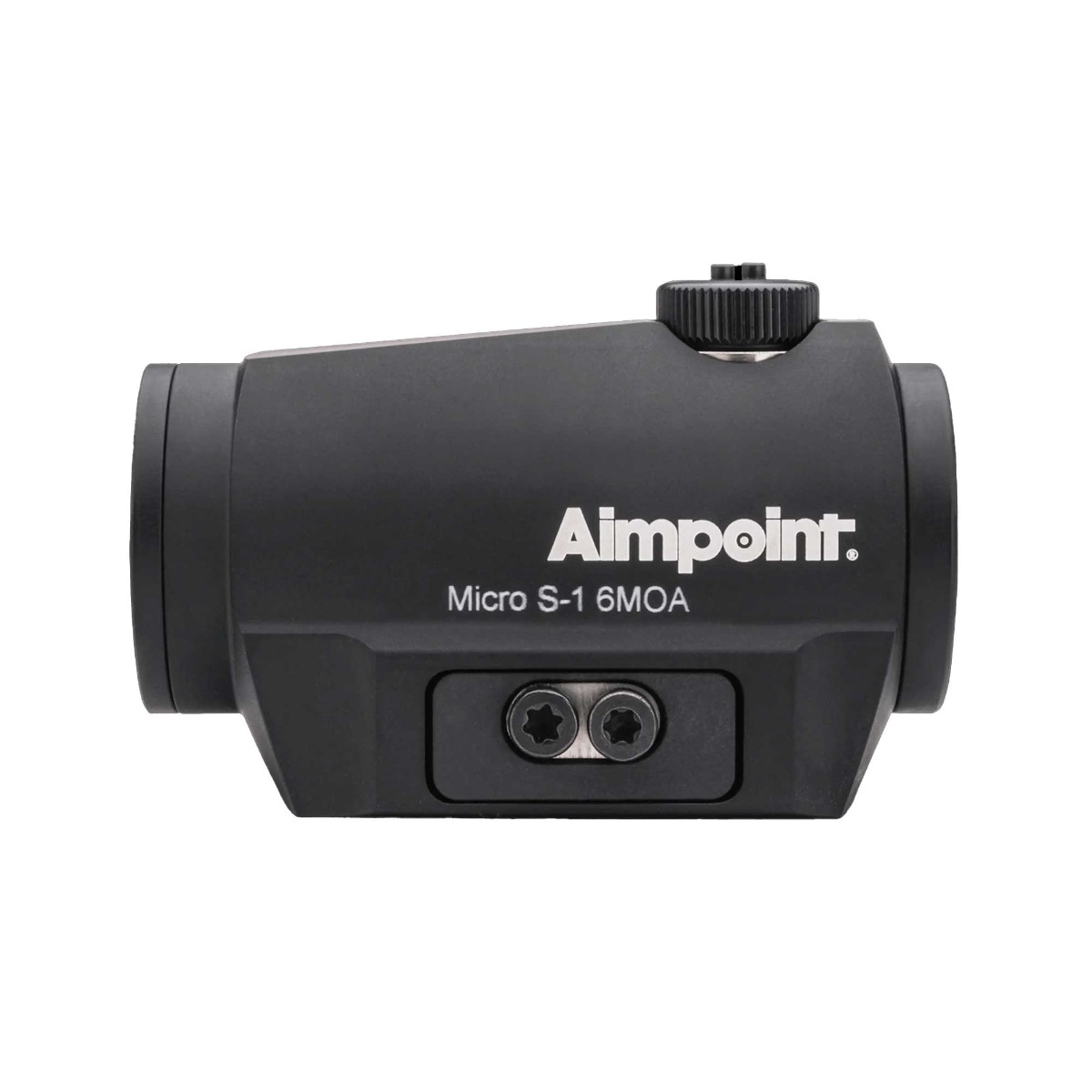

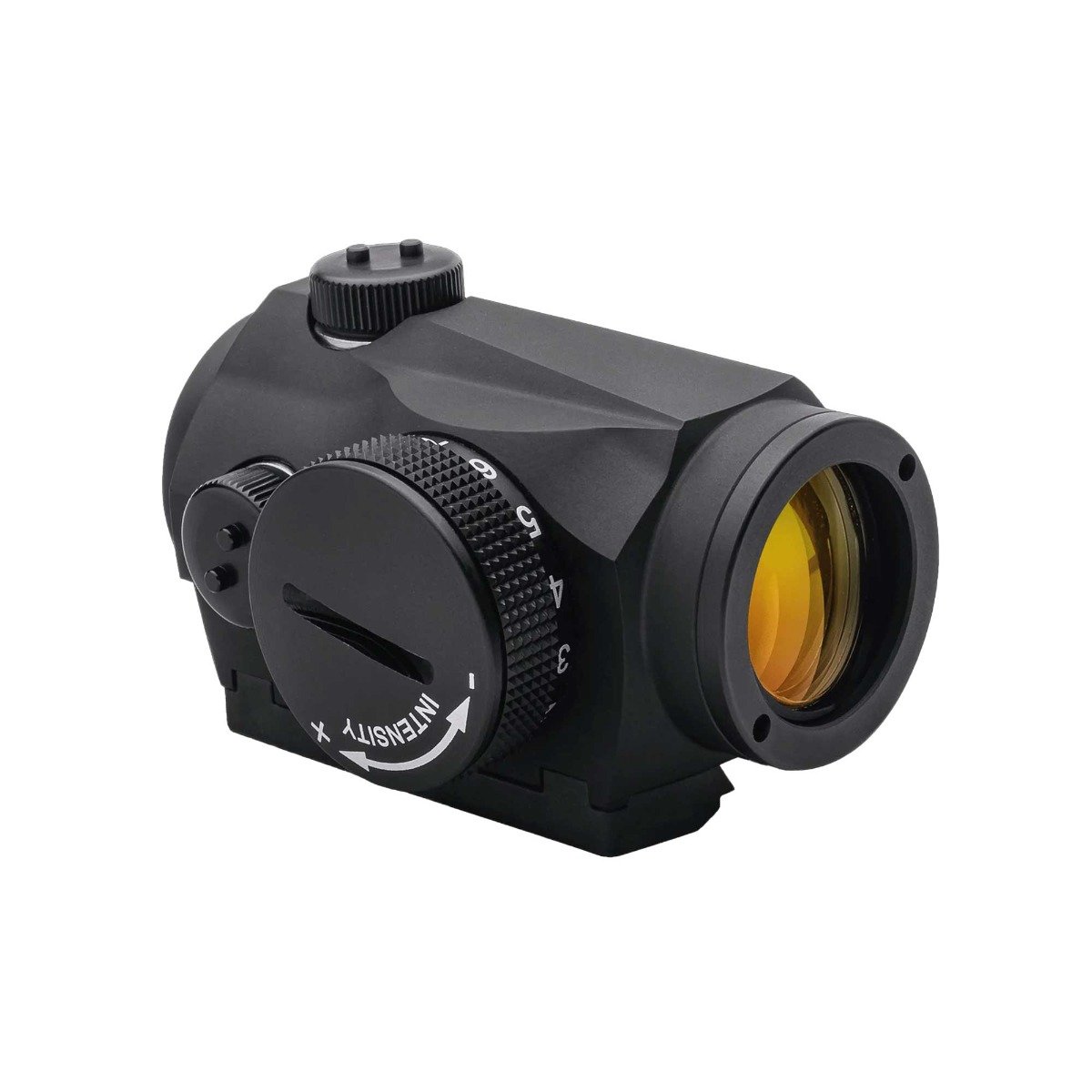

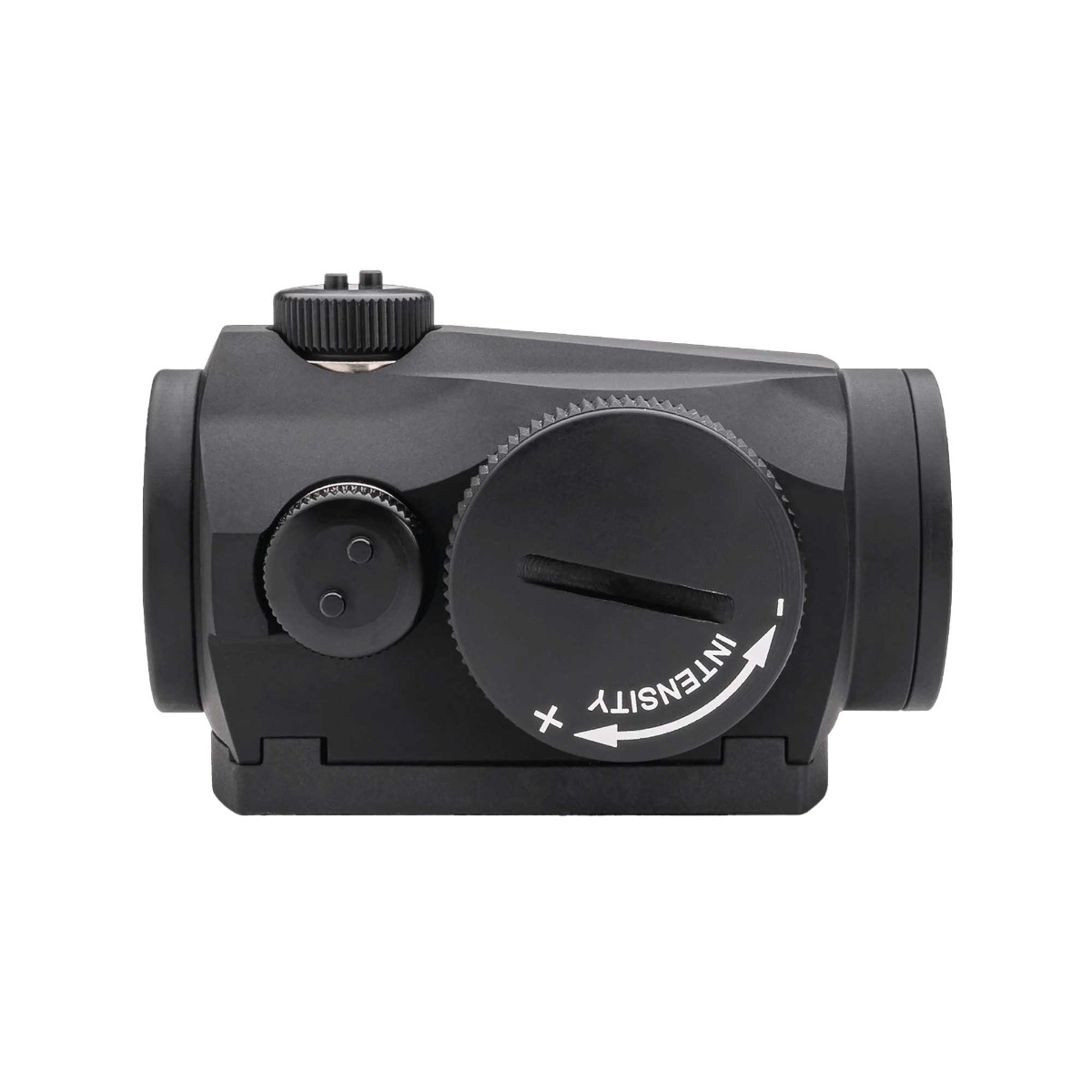

Aimpoint Micro S-1 6 MOA Red Dot Reflex Sight w/ Integrated Shotgun Rib Mount
- 50,000 hours (over 5 years) of constant operation on one battery
- Waterproof, lightweight, compact and fully enclosed protective housing
- Lightweight - 100 g (3.5 oz) sight only
- Versatile optic for all shotgun applications
- Ultra-low integrated and carbon fiber reinforced rib mount - Interchangeable base plates included to accommodate most rib sizes (6-12mm)
- Height of Optical Axis 14 mm (0.6 in) measured from top surface of mechanical interface
- 12 intensity settings with higher maximum settings for bright sky conditions
- 6 MOA dot size
The Aimpoint® Micro S-1 was designed specifically for use on shotguns. . It provides a compact, low-profile optic for shotgun hunters.
The Micro S-1 attaches directly to the shotgun at any point along the ventilated rib, allowing you to choose optimal placement for proper cheek weld and instinctive shooting position. An integrated carbon fiber reinforced mounting system achieves an ultra-low optical axis height and interchangeable adapter plates are included to accommodate most popular shotgun rib sizes. The large, bright 6 MOA red dot gives the shooter improved target acquisition and increased aiming confidence. - even in bright sky conditions.
The Micro S-1 greatly enhances hit percentage for hunters, as well as on the sporting clays course.
- Size (Length x Width x Height): 64 x 48 x 41 mm / 2.5 x 1.9 x 1.6 in
- Weight: 100 g / 3.5 oz
- Dot size: 6 MOA
- Magnification: 1X - No Magnification
- NVD compatibility: No
- Transmission: Average 60% in the range 420 - 700 nm
- Eye relief: Unlimited
- Mounting solution: Interchangeable Base Plates to accommodate most rib sizes
- Mounting platform: Shotgun Rib with width 6.0 - 12.0 mm and ventilated rib thickness 1.3 - 3.6 mm
- Dot colour: Red
- Light source wavelength: 650 nm red light
- Optical coating: Anti-reflex coating on all surfaces and multilayer coating objective lens
- Parallax: Operationally parallax-free - No centring required
- Diode: LED (Light Emitting Diode) totally eye safe
- Battery life: 50,000 h at daylight setting 7 (15,000 Lux, room temperature)
- Battery type: CR2032, 3V, Lithium
- Power switch: Rotary Switch
- Daylight settings (DL): 12
- Torque - Mount to sight: 1.0 Nm / 9 in-lbs (Torx T10)
- Torque - Mount to rail: 1.0 Nm / 9 in-lbs (Torx T10)
- Mounting solution: Interchangeable Base Plates to accommodate most rib sizes
- Material housing and tube: Aluminium, Integrated Mount: Reinforced Polymer
- Surface finish housing: Anodised, Semi-matte
- Colour housing: Black
- Lens covers: Bikini Lens Cover, Rubber, Solid
- Adjustment per click: 1 click = 13 mm at 100 m / 0.5 in at 100 yds
- Size (Length x Width x Height) - Sight only: 64 x 48 x 41 mm / 2.5 x 1.9 x 1.6 in
- Size (Length x Width x Height): 64 x 48 x 41 mm / 2.5 x 1.9 x 1.6 in
- Weight - Optic only: 100 g / 3.5 oz
- Weight: 100 g / 3.5 oz
- Water resistance: 5 m / 15 ft
- Operating temperature: -30°C to +60°C / -20°F to +140°F
- Storage temperature: -51°C to +71°C / -60°F to +160°F
- Temperature shock: Operable after a temperature shock between -30°C and +60°C (-22°F and +140°F)
- Humidity: Operable during and after humidity. Limits: RH: 95%, Temp: +20°C to +50°C (+68°F to +122°F), cyclic
- Vibration: Withstands vibration. Limits: Vibration, sinusoidal in a frequency range of 10-150 Hz. Frequency: 10-30 Hz, ±1.587 mm, Frequency: 30-150 Hz. 5.75 g, 1 octave/min. Direction: X, Y, and Z, Time: 30 min/direction.
- Shock: Operable before and after shock. Limits: X-axis: 500 g, 0.7 – 1.1 ms (3 shocks), Y-axis: 40g ±4g, 11 ±1ms (2 shocks in each direction), Z-axis: 40g ±4g, 11 ±1ms, 2 shocks in each direction.
- 50,000 hours (over 5 years) of constant operation on one battery
- Waterproof, lightweight, compact and fully enclosed protective housing
- Lightweight - 100 g (3.5 oz) sight only
- Versatile optic for all shotgun applications
- Ultra-low integrated and carbon fiber reinforced rib mount - Interchangeable base plates included to accommodate most rib sizes (6-12mm)
- Height of Optical Axis 14 mm (0.6 in) measured from top surface of mechanical interface
- 12 intensity settings with higher maximum settings for bright sky conditions
- 6 MOA dot size
- Aimpoint Micro S-1 6 MOA Red Dot Reflex Sight w/ Integrated Shotgun Rib Mount
- 2 years for professional or competition use
- 10 years for personal use from the date of purchase.
